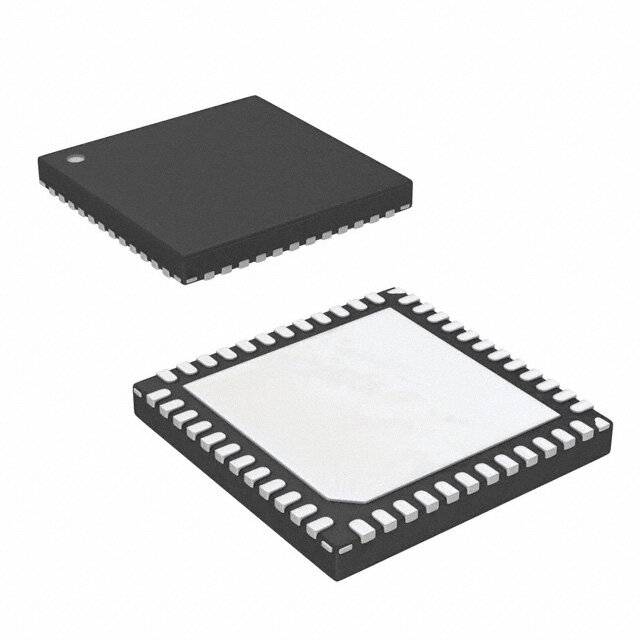

WM8753CLGEFL/RV image
Favorite
WM8753CLGEFL/RV image
Favorite

WM8753CLGEFL/RV

Cirrus Logic Inc.
RoHS
/
Package 48-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - CODECs
Description Tape & Reel (TR) S-PQCC-N48 Obsolete 95 / 98 codec 95dB 3.6V 150.507618mg 48ksps
PDF
/
Inventory: 1634
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 48-VFQFN Exposed Pad
Weight 150.507618mg

Technical

Operating Temperature -25°C~85°C
Packaging Tape & Reel (TR)
Published 2011
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 48
Type Stereo Audio
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Number of Functions 1
Supply Voltage 1.5V
Terminal Pitch 0.5mm
JESD-30 Code S-PQCC-N48
Operating Supply Voltage 3.6V
Interface 2-Wire, Serial
Operating Mode SYNCHRONOUS
Data Interface Serial
Sampling Rate 48 ksps
Voltage - Supply, Analog 1.8V~3.6V
Voltage - Supply, Digital 1.8V~3.6V
Number of A/D Converters 2
Signal to Noise Ratio (SNR) 95 dB
Number of D/A Converters 3
Resolution (Bits) 24 b
Sigma Delta Yes
Number of ADCs / DACs 2 / 2
Filter YES
S/N Ratio, ADCs / DACs (db) Typ 95 / 98

Dimensions

Height Seated (Max) 1mm
Length 7mm
Width 7mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
