TS5USBC400YFPT
RoHS
RoHS compliant

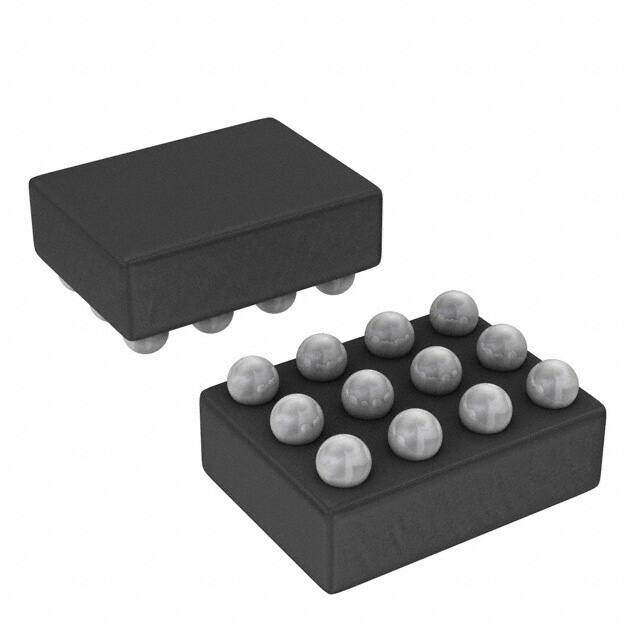

RoHS compliantPackage 12-XFBGA, DSBGA
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
DUAL 2:1 USB 2.0 MUX/DEMUX OR SI
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.735941
≥1 USD $0.735941
≥100 USD $0.556442
≥250 USD $0.406273
≥1000 USD $0.285965
Inventory: 58250
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness 0m
Width 0m
Length 0m
Height 500μm
Technical
Normal Position NO
Voltage - Supply, Single (V+) 2.3V~5.5V
Switch-off Time-Max 1000ns
Switching BREAK-BEFORE-MAKE
On-state Resistance Match-Nom 0.07Ohm
Off-state Isolation-Nom 22 dB
Multiplexer/Demultiplexer Circuit 2:1, 1:2
On-State Resistance (Max) 9Ohm
-3db Bandwidth 1.1GHz
Bandwidth 1200MHz
Input Voltage (Max) 5.5V
Analog IC - Other Type DIFFERENTIAL MULTIPLEXER
Number of Channels 2
Supply Voltage-Max (Vsup) 5.5V
Output SEPARATE OUTPUT
Base Part Number TS5USBC400
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.4mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Applications USB, UART
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Bi-Directional
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C
Physical
Number of Pins 12
Surface Mount YES
Package / Case 12-XFBGA, DSBGA
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
