TS3V713ELRTGR
RoHS
RoHS compliant
RoHS compliantPackage 32-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description

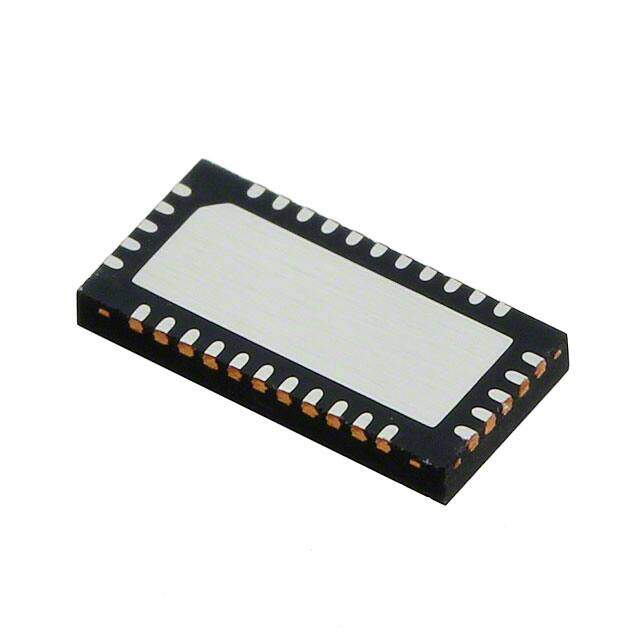

TEXAS INSTRUMENTS TS3V713ELRTGR IC, VIDEO SW, 4 OHM, WQFN-32
PDF
/
Buying Options
Total Price: USD $4.04
Unit Price: USD $4.039567
≥1 USD $4.039567
≥10 USD $3.933607
≥100 USD $3.862967
≥500 USD $0.8797
≥1000 USD $0.85025
Inventory: 14
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 750μm
Width 3mm
Length 6mm
Height 800μm
Technical
Normal Position NO
Voltage - Supply, Single (V+) 3V~3.6V 4.5V~5.5V
Switching BREAK-BEFORE-MAKE
Switch Circuit SPDT
On-state Resistance Match-Nom 0.2Ohm
Off-state Isolation-Nom 40 dB
Multiplexer/Demultiplexer Circuit 2:1
Low Level Output Current 128mA
Dual Supply Voltage 5V
High Level Output Current 128mA
On-State Resistance (Max) 8Ohm
Turn-Off Delay Time 13 ns
Bandwidth 1.3 GHz
Supply Type Dual, Single
Number of Inputs 7
Logic Function Demultiplexer, Multiplexer
Turn On Delay Time 13 ns
Propagation Delay 250 ps
Max Supply Current 500μA
Operating Supply Current 200μA
Min Supply Voltage 3V
Max Supply Voltage 5.5V
Number of Channels 7
Operating Supply Voltage 5V
Number of Outputs 1
Pin Count 32
Base Part Number TS3V713
Terminal Pitch 0.4mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Subcategory Multiplexer or Switches
Applications Video
Resistance 8Ohm
ECCN Code EAR99
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature DDC CLK, DDC DAT, HSYNC, RGB, VSYNC
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 32
Package / Case 32-WFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 6 Weeks
