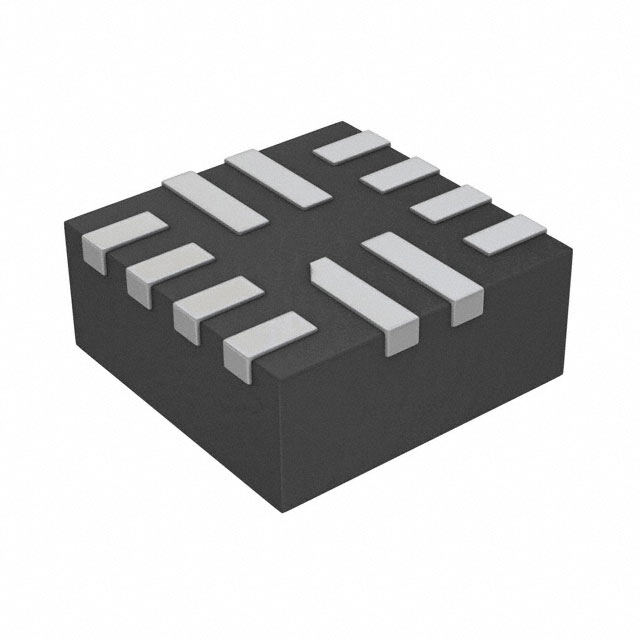

TS3USB3031RMGR
RoHS
RoHS compliant
RoHS compliantPackage 12-WFQFN
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
IC USB SWITCH DUAL 1X2 12WQFN
PDF
/
Buying Options
Total Price: USD $3.46
Unit Price: USD $3.4561
≥1 USD $3.4561
≥10 USD $2.8367
≥100 USD $2.7474
≥500 USD $2.65905
≥1000 USD $2.5707
Inventory: 20001
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 750μm
Width 1.8mm
Length 1.8mm
Height 800μm
Technical
Normal Position NC
Voltage - Supply, Single (V+) 2.5V~4.3V
Switching BREAK-BEFORE-MAKE
Switch Circuit DP3T
On-State Resistance (Max) 7Ohm
Turn-Off Delay Time 100 μs
Supply Current-Max (Isup) 0.00004mA
Bandwidth 6.5 GHz
Supply Type Single
Number of Inputs 2
Turn On Delay Time 100 μs
Operating Supply Current 28μA
Analog IC - Other Type DIFFERENTIAL MULTIPLEXER
Min Supply Voltage 2.5V
Max Supply Voltage 4.3V
Number of Channels 1
Number of Outputs 6
Base Part Number TS3USB3031
Terminal Pitch 0.4mm
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Applications USB
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Resistance 7Ohm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature USB 2.0
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 12
Package / Case 12-WFQFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 12 Weeks
