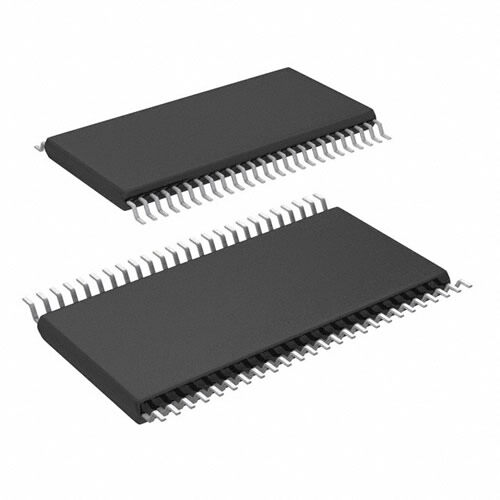

TS3L301DGGG4
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
IC ETHERNET SWITCH 16X8 48TSSOP
PDF
/
Inventory: 4591
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Switching BREAK-BEFORE-MAKE
Normal Position NO
On-state Resistance Match-Nom 0.2Ohm
Off-state Isolation-Nom 39 dB
Turn-Off Delay Time 8.5 ns
Supply Current-Max (Isup) 0.6mA
Bandwidth 900MHz
Supply Type Single
Number of Inputs 16
Turn On Delay Time 11.5 ns
Propagation Delay 250 ps
Nominal Supply Current 250μA
Operating Supply Current 250μA
Analog IC - Other Type DIFFERENTIAL MULTIPLEXER
Min Supply Voltage 3V
Max Supply Voltage 3.6V
Number of Channels 8
Temperature Grade INDUSTRIAL
Operating Supply Voltage 3.3V
Pin Count 48
Output SEPARATE OUTPUT
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Multiplexer or Switches
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Resistance 8Ohm
ECCN Code EAR99
Number of Terminations 48
Moisture Sensitivity Level (MSL) 1
JESD-609 Code e4
Dimensions
Height 1.05mm
Length 12.6mm
Width 6.2mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Weight 223.195796mg
Number of Pins 48
Package / Case TSSOP
Mount Surface Mount
