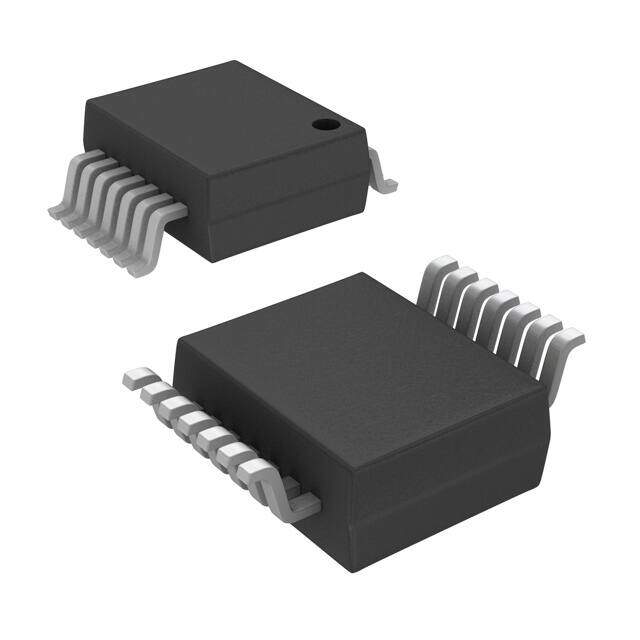

TS3L100DGVR
RoHS
RoHS compliant
RoHS compliantPackage 16-TFSOP (0.173, 4.40mm Width)
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
IC ETHERNET SWITCH QUAD 16TVSOP
PDF
/
Buying Options
Total Price: USD $1.91
Unit Price: USD $1.906111
≥1 USD $1.906111
≥100 USD $1.545025
≥250 USD $1.100277
≥1000 USD $0.815908
Inventory: 9691
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 1.05mm
Width 4.4mm
Length 3.6mm
Height 1.2mm
Technical
Normal Position NO
Voltage - Supply, Single (V+) 3V~3.6V
Switching BREAK-BEFORE-MAKE
Switch Circuit SPDT
On-state Resistance Match-Nom 1Ohm
Off-state Isolation-Nom 42 dB
Multiplexer/Demultiplexer Circuit 2:1
On-State Resistance (Max) 15Ohm
Turn-Off Delay Time 3.5 ns
Supply Current-Max (Isup) 0.003mA
Bandwidth 350MHz
Supply Type Single
Number of Inputs 4
Input Voltage (Max) 5.5V
Turn On Delay Time 7.5 ns
Propagation Delay 7.5 ns
Operating Supply Current 700μA
Min Supply Voltage 3V
Max Supply Voltage 3.6V
Number of Channels 4
Operating Supply Voltage 3.3V
Number of Outputs 8
Pin Count 16
Base Part Number TS3L100
Supply Voltage 3.3V
Number of Functions 4
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Multiplexer or Switches
Applications Networking
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Resistance 15Ohm
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature 10/100 Base-T
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C TA
Physical
Weight 41.900595mg
Number of Pins 16
Package / Case 16-TFSOP (0.173, 4.40mm Width)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
