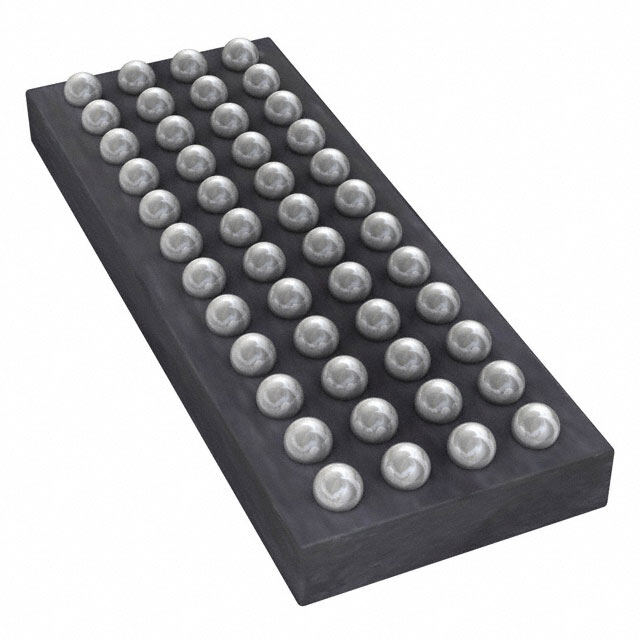

TS3DDR4000ZBAR
RoHS
RoHS compliant
RoHS compliantPackage 48-TFBGA
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
IC DDR SWITCH/MUX 48NFBGA
PDF
/
Buying Options
Total Price: USD $2.28
Unit Price: USD $2.2792
≥1 USD $2.2792
≥10 USD $2.04688
≥100 USD $1.931072
≥500 USD $1.64516
≥1000 USD $1.544717
≥3000 USD $1.351645
Inventory: 6261
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 48-TFBGA
Number of Pins 48
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e1
Feature DDR2, DDR3, DDR4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 48
ECCN Code EAR99
Resistance 11.2Ohm
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications Memory
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TS3DDR4000
Output SEPARATE OUTPUT
Number of Channels 1
Operating Supply Current 40μA
Logic Function Demultiplexer, Multiplexer
Supply Type Single
Bandwidth 6 GHz
Supply Current-Max (Isup) 0.044mA
-3db Bandwidth 5.6GHz
On-State Resistance (Max) 11.2Ohm
Multiplexer/Demultiplexer Circuit 2:1
Switch-on Time-Max 65ns
Switch-off Time-Max 65ns
Voltage - Supply, Single (V+) 2.375V~3.6V
Normal Position NO
Dimensions
Height 1.05mm
Length 8mm
Width 3mm
Thickness 680μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
