TS2PCIE2212ZAHR
RoHS
RoHS compliant
RoHS compliantPackage 48-LFBGA
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description

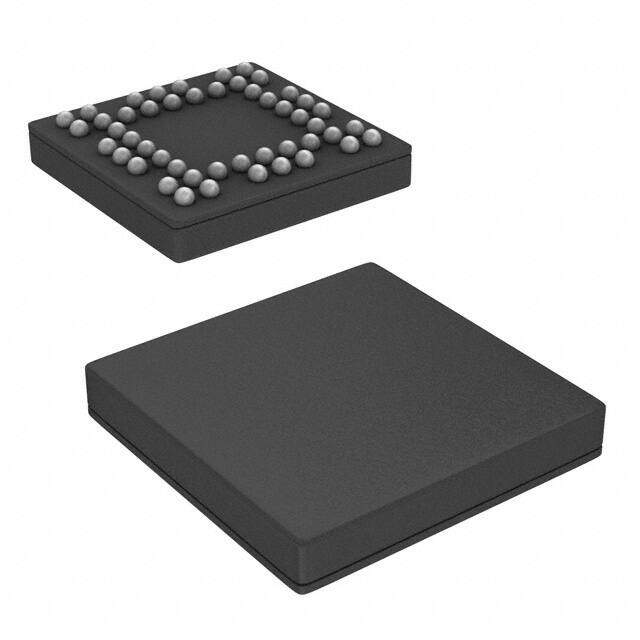

TEXAS INSTRUMENTS TS2PCIE2212ZAHR SWITCH, PCI-EXPRESS SIGNAL, 48BGA
PDF
/
Buying Options
Total Price: USD $1.91
Unit Price: USD $1.9057
≥1 USD $1.9057
≥10 USD $1.5637
≥100 USD $1.5143
≥500 USD $1.46585
≥1000 USD $1.4174
Inventory: 9763
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Thickness 890μm
Width 5mm
Length 5mm
Height 1.2mm
Technical
Bus Compatibility PCI
Voltage - Supply, Single (V+) 1.7V~1.9V
Multiplexer/Demultiplexer Circuit 2:1
On-State Resistance (Max) 17Ohm
Bandwidth 1.25 GHz
Supply Type Single
Data Rate 2.5 Gbps
Logic Function Demultiplexer, Multiplexer
Propagation Delay 5 ps
Throw Configuration SPDT
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, PCI
Nominal Supply Current 160μA
Number of I/O 32
Operating Supply Current 300μA
Min Supply Voltage 1.7V
Max Supply Voltage 1.9V
Number of Channels 2
Qualification Status Not Qualified
Pin Count 48
Base Part Number TS2PCIE2212
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 1.8V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Applications PCI Express?
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Resistance 17Ohm
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 48
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature 0°C~85°C TA
Physical
Number of Pins 48
Package / Case 48-LFBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
