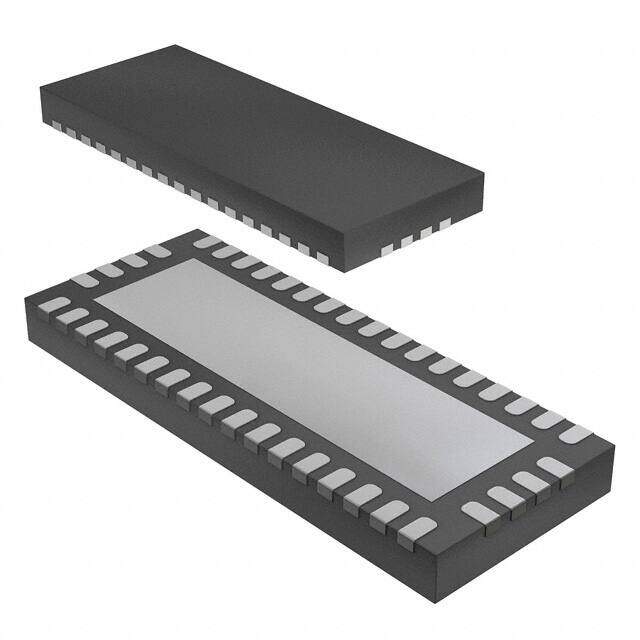

HD3SS6126RUAR
RoHS
RoHS compliant
RoHS compliantPackage 42-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
IC MUX 2:1 8 OHM 42WQFN
PDF
/
Buying Options
Total Price: USD $2.96
Unit Price: USD $2.9568
≥1 USD $2.9568
≥10 USD $2.65232
≥100 USD $2.507648
≥500 USD $2.173424
≥1000 USD $2.06191
≥3000 USD $1.850165
Inventory: 7395
Minimum: 1
-
+
Technical Details
Technical
Number of Ports 3
Turn On Delay Time 250 ns
Logic Function Demultiplexer, Multiplexer
Data Rate 10 Gbps
Supply Type Single
Bandwidth 10 GHz
Turn-Off Delay Time 250 ns
On-State Resistance (Max) 8Ohm
Multiplexer/Demultiplexer Circuit 2:1
Switching BREAK-BEFORE-MAKE
USB USB 2.0
Voltage - Supply, Single (V+) 3V~3.6V
Normal Position NO
Operating Supply Current 2.4mA
Analog IC - Other Type DIFFERENTIAL MULTIPLEXER
Min Supply Voltage 3V
Max Supply Voltage 3.6V
Number of Channels 1
Operating Supply Voltage 3.3V
Output SEPARATE OUTPUT
Base Part Number HD3SS6126
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 2
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Subcategory Multiplexer or Switches
Applications USB, Telecommunications
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Resistance 8Ohm
ECCN Code EAR99
Number of Terminations 42
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature Bi-Directional, SATA, USB 2.0, USB 3.0
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C TA
Dimensions
Height 800μm
Length 9mm
Width 3.5mm
Thickness 750μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Weight 54.799628mg
Number of Pins 42
Package / Case 42-WFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
