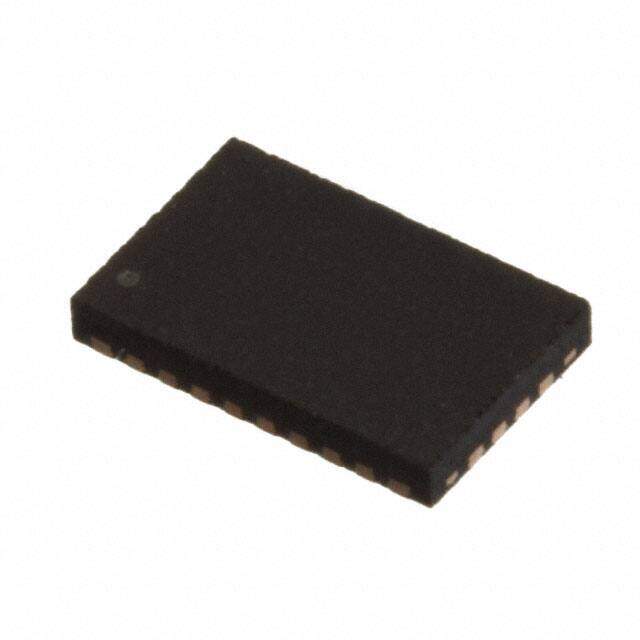

HD3SS460RHRR
RoHS
RoHS compliant
RoHS compliantPackage 28-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
IC MUX 6:4 14 OHM 28WFQFN
PDF
/
Buying Options
Total Price: USD $1.53
Unit Price: USD $1.5312
≥1 USD $1.5312
≥10 USD $1.37456
≥100 USD $1.296416
≥500 USD $1.104576
≥1000 USD $1.037168
≥3000 USD $0.913
Inventory: 1143
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 28-WFQFN Exposed Pad
Number of Pins 28
Technical
Operating Temperature 0°C~70°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e4
Feature Bi-Directional
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 28
ECCN Code EAR99
Resistance 14Ohm
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications USB
Terminal Position QUAD
Terminal Form NO LEAD
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Base Part Number HD3SS460
Output SEPARATE OUTPUT
Supply Voltage-Max (Vsup) 3.6V
Number of Channels 1
Logic Function Demultiplexer, Multiplexer
Supply Type Single
Bandwidth 5.4 GHz
Supply Current-Max (Isup) 0.9mA
On-State Resistance (Max) 14Ohm
Multiplexer/Demultiplexer Circuit 4:6
Off-state Isolation-Nom 25 dB
Switching BREAK-BEFORE-MAKE
Switch-on Time-Max 3000ns
Voltage - Supply, Single (V+) 3V~3.6V
Normal Position NO
Dimensions
Height 800μm
Length 5.5mm
Width 3.5mm
Thickness 750μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
