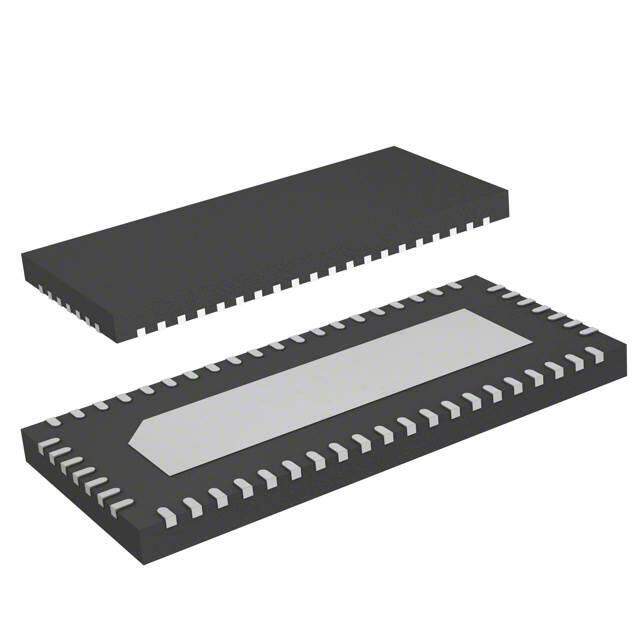

ST3DV520EQTR
RoHS
RoHS compliant
RoHS compliantPackage 56-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
IC MUX/DEMUX 4CH LVDS 56-QFN
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.91295
≥1 USD $0.91295
≥10 USD $0.74955
≥100 USD $0.7258
≥500 USD $0.70205
≥1000 USD $0.67925
Inventory: 1622
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 56-WFQFN Exposed Pad
Number of Pins 56
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Feature DDC, LVDS
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 56
Resistance 6.5Ohm
Applications Audio, Video
HTS Code 8542.39.00.01
Terminal Position QUAD
Number of Functions 4
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Base Part Number ST3DV
Number of Channels 6
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Analog IC - Other Type VIDEO MULTIPLEXER
Nominal Supply Current 500μA
Power Dissipation 500mW
Propagation Delay 250 ps
Logic Function Demultiplexer, Multiplexer
Supply Type Single
-3db Bandwidth 600MHz
On-State Resistance (Max) 6.5Ohm
Multiplexer/Demultiplexer Circuit 2:1
Off-state Isolation-Nom 37 dB
On-state Resistance Match-Nom 0.4Ohm
Switch Circuit SPDT
Switch-on Time-Max 15ns
Switch-off Time-Max 8.5ns
Voltage - Supply, Single (V+) 3V~3.6V
Dimensions
Height Seated (Max) 0.8mm
Length 11mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
