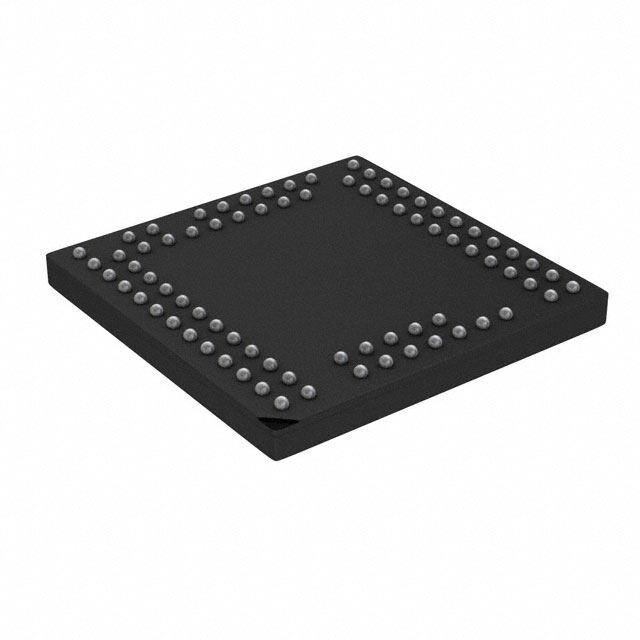

HV2802GA-G
RoHS
RoHS compliant
RoHS compliantPackage 78-VFBGA
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
IC SWITCH 32 X SPST 78VFBGA
PDF
/
Buying Options
Total Price: USD $26.7
Unit Price: USD $26.6992
≥1 USD $26.6992
≥10 USD $22.2464
≥100 USD $21.494
Inventory: 570
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9mm
Length 9mm
Height Seated (Max) 1mm
Technical
Signal Current-Max 3A
Normal Position NO
Switch-off Time-Max 5000ns
Switch-on Time-Max 5000ns
Switch Circuit SPST
Off-state Isolation-Nom -60 dB
Multiplexer/Demultiplexer Circuit 1:1
On-State Resistance (Max) 38Ohm
Neg Supply Voltage-Nom (Vsup) 100V
Supply Current-Max (Isup) 8mA
Voltage - Supply, Single/Dual (±) 40V~200V ±40V~160V
Number of Channels 32
Base Part Number HV2802
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 1
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.39.00.01
Applications Ultrasound
Number of Terminations 78
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2014
Packaging Tray
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 78
Surface Mount YES
Package / Case 78-VFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
