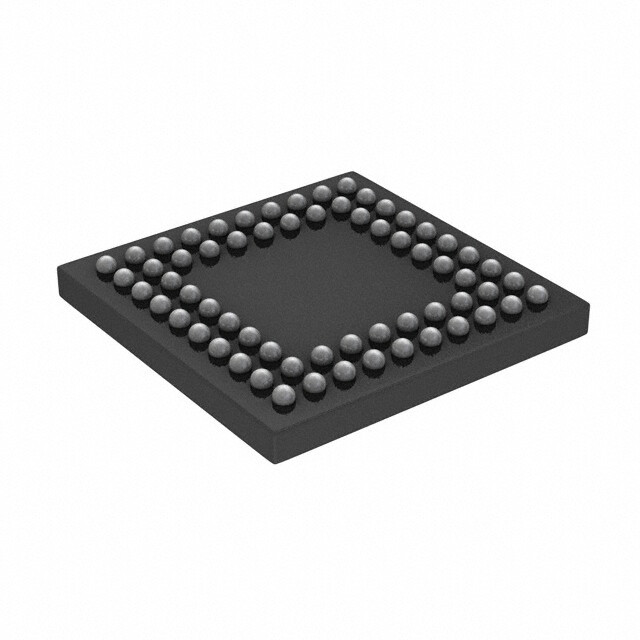

HV2762LA-G
RoHS
RoHS compliant
RoHS compliantPackage 64-VFLGA
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
Analog Switch 24 SPST 64-Pin LFGA TRAY
PDF
/
Inventory: 7713
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Length 7mm
Height Seated (Max) 0.85mm
Technical
Switch-off Time-Max 5000ns
Switch-on Time-Max 5000ns
Switch Circuit SPST
Off-state Isolation-Nom 33 dB
Multiplexer/Demultiplexer Circuit 1:1
Dual Supply Voltage 100V
Min Dual Supply Voltage 40V
On-State Resistance (Max) 26Ohm Typ
Max Dual Supply Voltage 200V
Turn-Off Delay Time 5 μs
Supply Type Dual
Voltage - Supply, Single/Dual (±) 40V~200V ±40V~160V
Turn On Delay Time 5 μs
Max Supply Current 10μA
Operating Supply Current 4.5mA
Min Supply Voltage 3V
Max Supply Voltage 5.5V
Number of Channels 24
Qualification Status Not Qualified
Base Part Number HV2762
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology HVCMOS
Max Power Dissipation 1W
HTS Code 8542.39.00.01
Applications Ultrasound
Terminal Finish MATTE TIN
Resistance 26Ohm
Number of Terminations 64
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e3
Published 2012
Packaging Tray
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 64
Package / Case 64-VFLGA
Mounting Type Surface Mount
Mount Surface Mount
