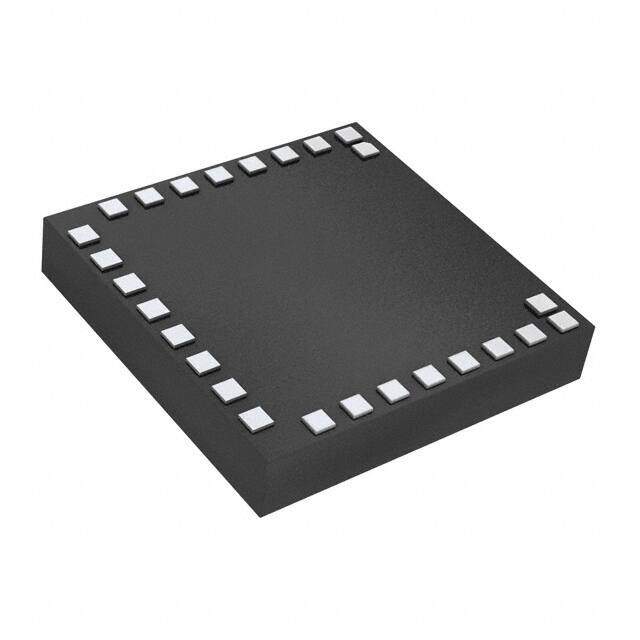

HV230G1-G
RoHS
RoHS compliant
RoHS compliantPackage 26-UFLGA
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
8-CHANNEL ANALOG SWITCH w/BLEED RESISTORS26 LLGA 6x6x0.60mm TRAY
PDF
/
Inventory: 4673
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Min Supply Voltage 4.5V
Max Supply Voltage 13.2V
Number of Channels 8
Operating Supply Voltage 13.2V
Qualification Status Not Qualified
Output SEPARATE OUTPUT
Base Part Number HV230
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 8
Peak Reflow Temperature (Cel) 260
Terminal Form BUTT
Terminal Position BOTTOM
Technology CMOS
Max Power Dissipation 1W
Subcategory Multiplexer or Switches
Additional Feature ALSO REQUIRES VPP (40V TO VNN +200V) AND VNN (-40V TO -160V) SUPPLY
Applications Ultrasound
Terminal Finish NICKEL PALLADIUM GOLD
Resistance 22Ohm
Number of Terminations 26
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e4
Published 2013
Packaging Tray
Operating Temperature 0°C~70°C TA
Normal Position NO
Switch-off Time-Max 5000ns
Switch-on Time-Max 5000ns
Switching MAKE-BEFORE-BREAK
Switch Circuit SPST
On-state Resistance Match-Nom 7.6Ohm
Off-state Isolation-Nom 58 dB
Multiplexer/Demultiplexer Circuit 1:1
Dual Supply Voltage 100V
Min Dual Supply Voltage 40V
On-State Resistance (Max) 38Ohm
-3db Bandwidth 50MHz
Max Dual Supply Voltage 200V
Turn-Off Delay Time 5 μs
Supply Type Dual
Voltage - Supply, Single/Dual (±) 40V~200V ±40V~160V
Turn On Delay Time 5 μs
Max Supply Current 10μA
Nominal Supply Current 8mA
Operating Supply Current 7mA
Physical
Number of Pins 26
Package / Case 26-UFLGA
Mounting Type Surface Mount
Mount Surface Mount
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Length 6mm
Height 550μm
