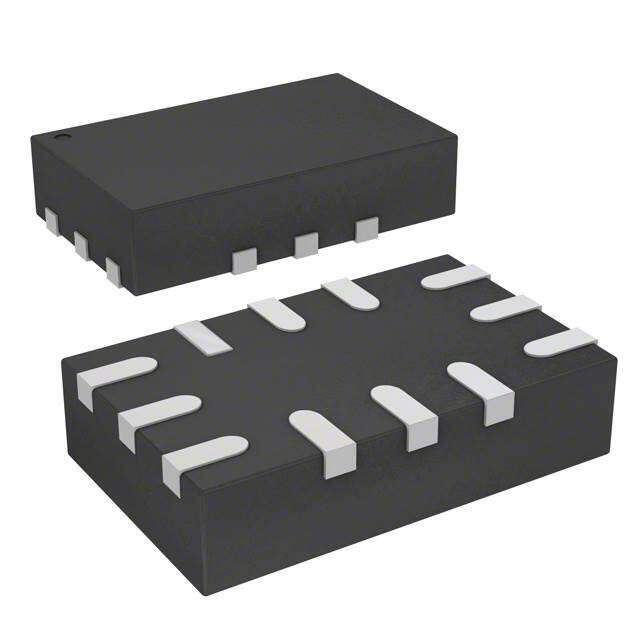

STG3856QTR
RoHS
RoHS compliant
RoHS compliantPackage 12-UFQFN
Category Integrated Circuits (ICs) / Interface - Analog Switches, Multiplexers, Demultiplexers
Description
Analog Switch Dual SP3T 12-Pin QFN T/R
PDF
/
Buying Options
Total Price: USD $1.57
Unit Price: USD $1.5664
≥1 USD $1.5664
≥10 USD $1.40536
≥100 USD $1.325632
≥500 USD $1.12948
≥1000 USD $1.060506
≥3000 USD $0.92796
Inventory: 17473
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Drain to Source Resistance 1Ohm
Voltage - Supply, Single (V+) 1.65V~4.3V
Switching BREAK-BEFORE-MAKE
Crosstalk -84dB @ 100kHz
Channel-to-Channel Matching (ΔRon) 10m Ω
Charge Injection 55pC
Switch Time (Ton, Toff) (Max) 40ns, 20ns
Switch Circuit SP3T
On-state Resistance Match-Nom 0.01Ohm
Channel Capacitance (CS(off), CD(off)) 5pF
Current - Leakage (IS(off)) (Max) 20nA
Off-state Isolation-Nom 82 dB
Multiplexer/Demultiplexer Circuit 3:1
On-State Resistance (Max) 1Ohm
-3db Bandwidth 100MHz
Turn-Off Delay Time 25 ns
Supply Type Single
Number of Inputs 2
Turn On Delay Time 50 ns
Max Supply Current 50nA
Nominal Supply Current 50nA
Operating Supply Current 50nA
Analog IC - Other Type DIFFERENTIAL MULTIPLEXER
Min Supply Voltage 1.4V
Max Supply Voltage 4.3V
Number of Channels 3
Number of Outputs 6
Pin Count 12
Base Part Number STG3856
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.4mm
Supply Voltage 2.7V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Technology CMOS
Max Power Dissipation 18.5mW
Subcategory Multiplexer or Switches
Terminal Finish Nickel/Palladium (Ni/Pd)
Resistance 1Ohm
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C TA
Physical
Number of Pins 12
Package / Case 12-UFQFN
Mounting Type Surface Mount
Mount Surface Mount
