STG3693QTR
RoHS
RoHS compliant

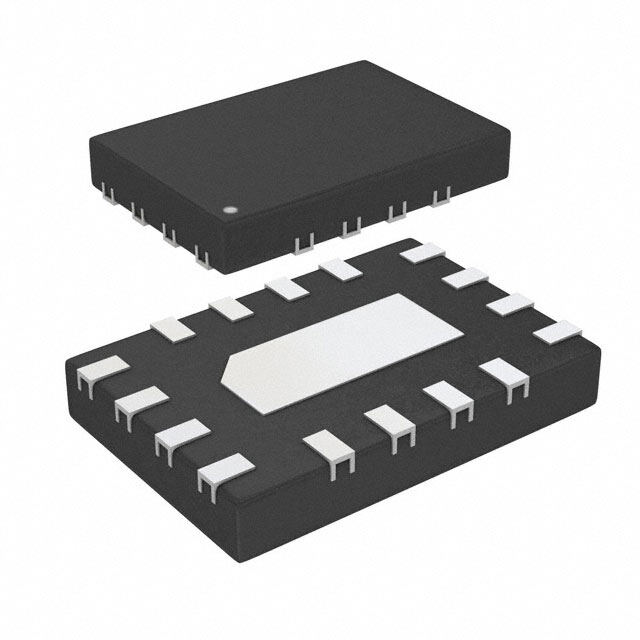

RoHS compliantPackage 16-UFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Analog Switches, Multiplexers, Demultiplexers
Description
Analog Switch Quad SPDT 16-Pin QFN T/R
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.716
≥1 USD $1.716
≥10 USD $1.5444
≥100 USD $1.456576
≥500 USD $1.241152
≥1000 USD $1.165366
≥3000 USD $1.019709
Inventory: 1326
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-UFQFN Exposed Pad
Number of Pins 16
Technical
Operating Temperature -55°C~125°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
ECCN Code EAR99
Resistance 5.2Ohm
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory Multiplexer or Switches
Max Power Dissipation 1.12W
Technology CMOS
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3V
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number STG3693
Pin Count 16
Number of Outputs 8
Number of Channels 1
Max Supply Voltage 4.3V
Min Supply Voltage 1.65V
Operating Supply Current 100nA
Nominal Supply Current 200nA
Power Dissipation 1.12W
Max Supply Current 100nA
Turn On Delay Time 31 ns
Number of Inputs 4
Supply Type Single
Bandwidth 800MHz
Turn-Off Delay Time 6 ns
On-State Resistance (Max) 5.2Ohm
Multiplexer/Demultiplexer Circuit 2:1
Off-state Isolation-Nom 79 dB
Current - Leakage (IS(off)) (Max) 20nA
Channel Capacitance (CS(off), CD(off)) 5pF
On-state Resistance Match-Nom 0.3Ohm
Switch Circuit SPDT
Switch Time (Ton, Toff) (Max) 15ns, 5ns
Charge Injection 5pC
Channel-to-Channel Matching (ΔRon) 300m Ω
Crosstalk -78dB @ 1MHz
Switching BREAK-BEFORE-MAKE
Voltage - Supply, Single (V+) 1.65V~4.3V
Dimensions
Height Seated (Max) 0.55mm
Length 2.6mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
