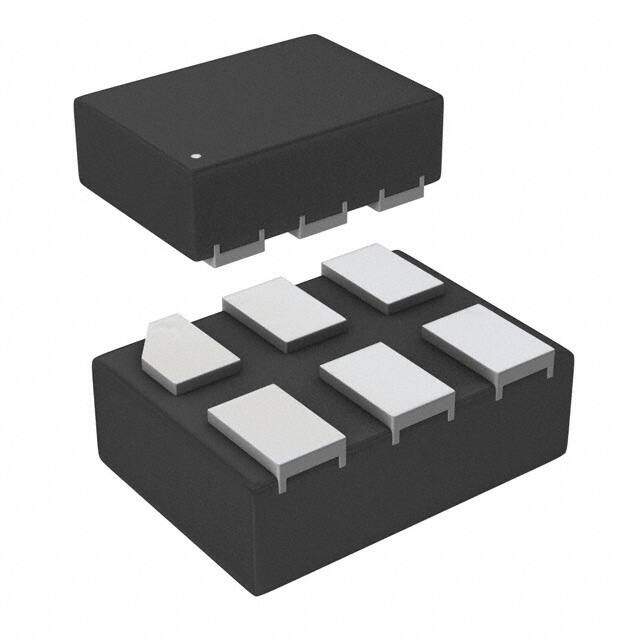

STG3155DTR
RoHS
RoHS compliant
RoHS compliantPackage 6-UFDFN
Category Integrated Circuits (ICs) / Interface - Analog Switches, Multiplexers, Demultiplexers
Description
IC SWITCH SPDT 6DFN
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.7304
≥1 USD $0.7304
≥10 USD $0.6556
≥100 USD $0.622336
≥500 USD $0.511104
≥1000 USD $0.477734
≥3000 USD $0.422189
Inventory: 1677
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-UFDFN
Number of Pins 6
Technical
Operating Temperature -55°C~125°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Resistance 600mOhm
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Additional Feature 2-CHANNEL MUX/DEMUX
Subcategory Multiplexer or Switches
Max Power Dissipation 1.12W
Technology CMOS
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Voltage - Supply, Single (V+) 1.65V~4.3V
Switching BREAK-BEFORE-MAKE
Crosstalk -72dB @ 100kHz
Channel-to-Channel Matching (ΔRon) 21m Ω
Charge Injection 53pC
Switch Time (Ton, Toff) (Max) 55ns, 30ns
Switch Circuit SPDT
On-state Resistance Match-Nom 0.017Ohm
Channel Capacitance (CS(off), CD(off)) 6.6pF
Current - Leakage (IS(off)) (Max) 20nA
Off-state Isolation-Nom 74 dB
Multiplexer/Demultiplexer Circuit 2:1
On-State Resistance (Max) 600mOhm
-3db Bandwidth 70MHz
Turn-Off Delay Time 30 ns
Supply Type Single
Turn On Delay Time 55 ns
Max Supply Current 50nA
Output Current 200mA
Nominal Supply Current 1μA
Operating Supply Current 50nA
Min Supply Voltage 1.65V
Max Supply Voltage 4.3V
Number of Circuits 1
Number of Channels 1
Output Voltage 4.3V
Qualification Status Not Qualified
Pin Count 6
Base Part Number STG3155
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 2.7V
Number of Functions 1
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.55mm
