356-201
RoHS
RoHS compliant
RoHS compliantPackage /
Category Tools / Insertion, Extraction
Description

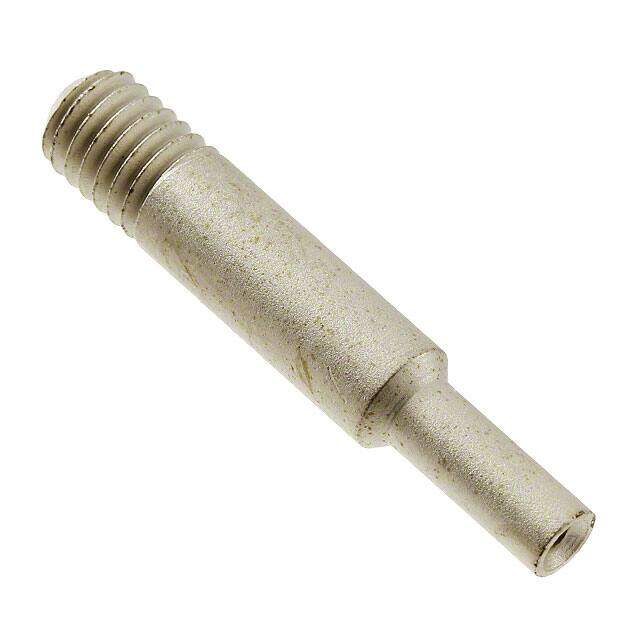

REMOVAL BIT FOR #20 PIN
PDF
/
Buying Options
Total Price: USD $90.97
Unit Price: USD $90.9744
≥1 USD $90.9744
≥10 USD $85.46384
≥100 USD $82.70768
≥500 USD $79.950464
Inventory: 52
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material BRASS
Mounting Type BOARD
Mounting Style RIGHT ANGLE
Technical
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type BOARD CONNECTOR
Number of Rows 3
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating AU ON NI
Total Number of Contacts 60
Terminal Pitch 2.0066mm
Reach Compliance Code unknown
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.575 inch
Number Of PCB Rows 3
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 105°C
Body Breadth 0.236 inch
Contact Gender MALE
Operating Temperature (Min) -40°C
Body Depth 0.286 inch
Rated Current (Signal) 2A
Contact Style SQ PIN-SKT
Contact Resistance 20mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.079 inch
Termination Type SOLDER
Dielectric Withstanding Voltage 500VAC V
PCB Contact Row Spacing 2.0066 mm
Durability 50 Cycles
Contact Pattern RECTANGULAR
Mating Contact Row Spacing 0.079 inch
Tool Type Extraction Tool Tip
Dimensions
Plating Thickness 30μin
Length - Termination 0.11 inch
Compliance
RoHS Status ROHS3 Compliant
