356-20
RoHS
RoHS compliant
RoHS compliantPackage /
Category Tools / Insertion, Extraction
Description

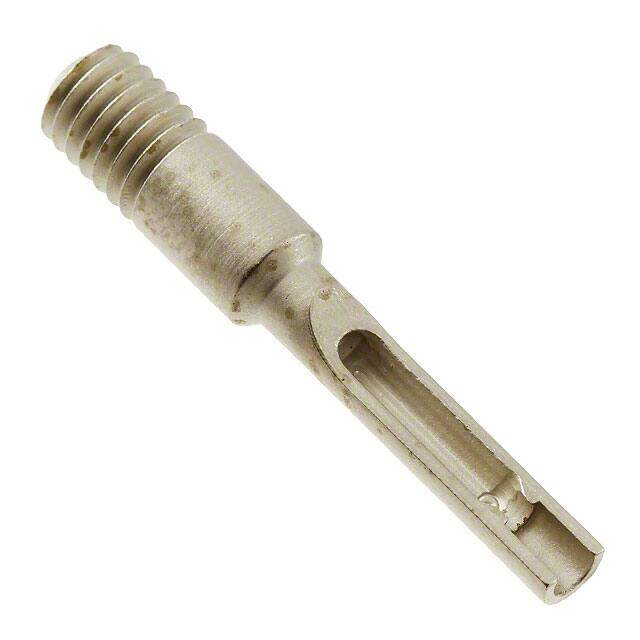

INSERTION BIT FOR #20 PIN-SKT.
PDF
/
Buying Options
Total Price: USD $114.84
Unit Price: USD $114.84
≥1 USD $114.84
≥10 USD $104.4032
Inventory: 27
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.118 inch
Plating Thickness 15μin
Technical
Tool Type Insertion Tool Tip
Mating Contact Row Spacing 0.05 inch
Contact Pattern RECTANGULAR
Durability 50 Cycles
PCB Contact Row Spacing 1.27 mm
Dielectric Withstanding Voltage 250VAC V
Polarization Key POLARIZED HOUSING
Termination Type SOLDER
Body/Shell Style PLUG
Mating Contact Pitch 0.05 inch
Insulation Resistance 1000000000Ohm
Contact Resistance 30mOhm
Contact Style SQ PIN-SKT
Rated Current (Signal) 1A
Operating Temperature (Min) -25°C
Contact Gender MALE
Body Breadth 0.189 inch
Operating Temperature (Max) 85°C
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Body Length or Diameter 1.793 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Reach Compliance Code unknown
Terminal Pitch 1.27mm
Total Number of Contacts 62
Contact Finish - Mating AU ON NI
Subcategory Headers and Edge Type Connectors
Number of Rows 2
Connector Type BOARD CONNECTOR
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Physical
Mounting Style RIGHT ANGLE
Mounting Option 1 LOCKING
Insulation Material GLASS FILLED LIQUID CRYSTAL POLYMER
Mounting Type BOARD
Supply Chain
Factory Lead Time 8 Weeks
