1687480
RoHS
/
Package /
Category Connectors, Interconnects / Heavy Duty Connectors - Inserts, Modules
Description

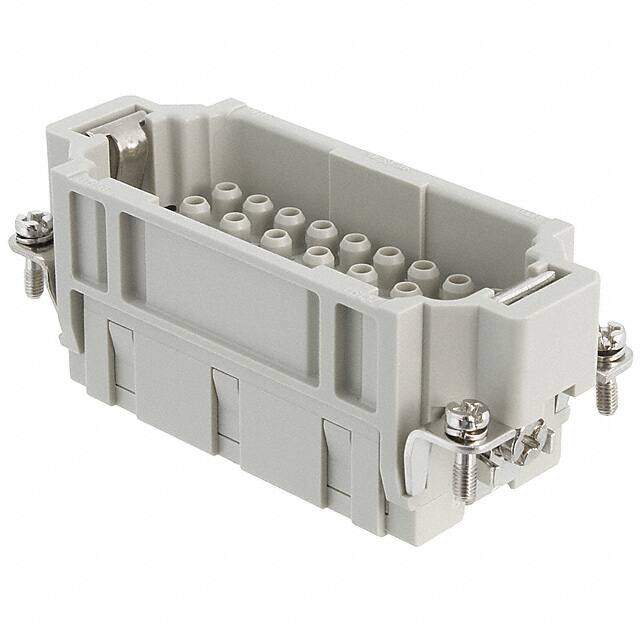

Heavy Duty Power Connectors Male BB32 32P Crimp
PDF
/
Inventory: 1616
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP66
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Size B16
Max Current Rating 16A
Termination Style Crimp
Current Rating 16A
Reach Compliance Code unknown
Orientation Straight
Option GENERAL PURPOSE
Contact Type CK 2.5-ED
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 500V
Gender Male
Number of Positions 32
Connector Type Insert without Contacts
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Series HEAVYCON? BB 32
Published 2009
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Housing Material Polycarbonate (PC)
Mount Panel
Contact Plating Silver
Contact Material COPPER ALLOY
Supply Chain
Factory Lead Time 5 Weeks
