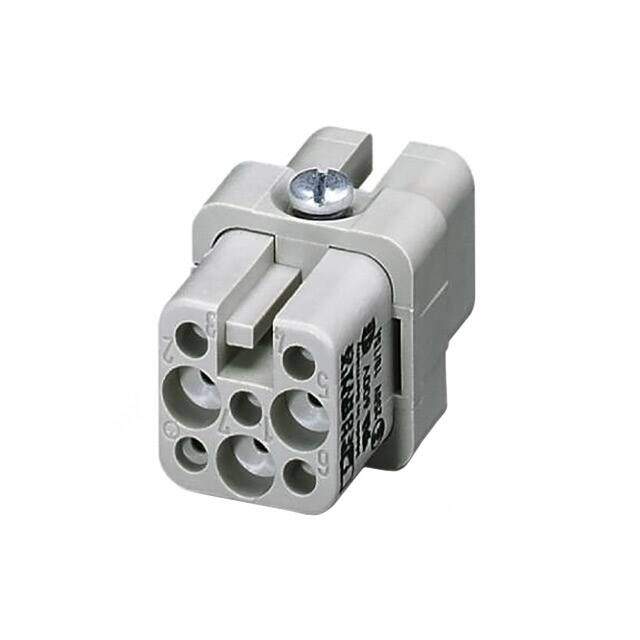

1679508 image
Favorite
1679508 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Heavy Duty Connectors - Inserts, Modules
Description Conn HEAVYCON Insert F 7 POS Crimp ST Cable Mount
PDF
/
Inventory: 1523
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings IP66
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Size D7
Empty Shell NO
UL Flammability Code 94V-0
Termination Style Crimp
Current Rating 10A
Reach Compliance Code unknown
Total Number of Contacts 7
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type CK 1.6-ER
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 600V
Gender Female
Number of Positions 7+Ground
Connector Type Insert without Contacts
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Pbfree Code yes
JESD-609 Code e4
Series HEAVYCON? D7
Published 2009
Packaging Bulk
Operating Temperature -40°C~125°C

Physical

Housing Material Polybutylene Terephthalate (PBTP)
Number of Pins 7
Mounting Type CABLE AND PANEL
Contact Plating Silver
Contact Material COPPER ALLOY

Supply Chain

Factory Lead Time 3 Weeks
