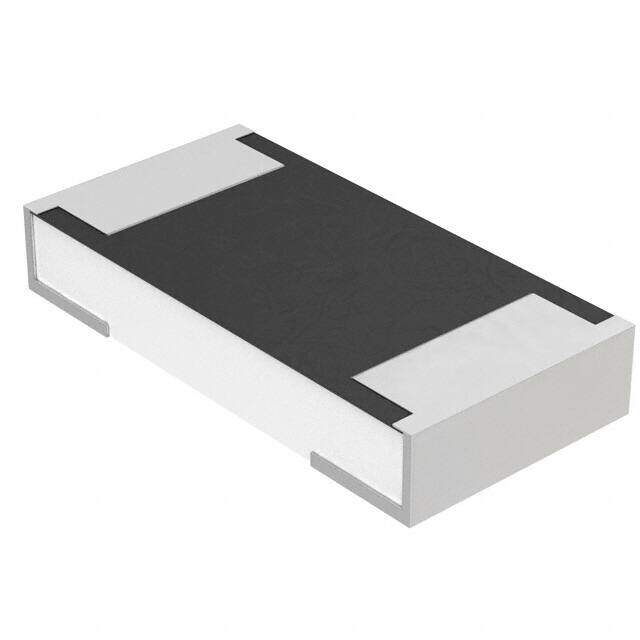

MFU1206FF05000P100
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Circuit Protection / Fuses
Description
Fuse; Chip; Very Fast Acting; 5A; Sz 1206; Dims 3.2x1.6x0.55mm; Ceramic; SMT; 63VDC; PCB
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.484
≥1 USD $0.484
≥10 USD $0.47168
≥100 USD $0.45672
≥500 USD $0.384208
≥1000 USD $0.318912
≥3000 USD $0.289907
Inventory: 8224
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Height 558.8μm
Technical
Fuse Current 5A
Blow Characteristic VERY FAST
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.02Ohm
Melting I2t 0.2275
Breaking Capacity @ Rated Voltage 50A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Working Voltage 63V
Case Code (Imperial) 1206
Approval Agency UL
Case Code (Metric) 3216
Current Rating 5A
Depth 1.6mm
Packing Method TAPE AND REEL
Voltage - Rated DC 63V
HTS Code 8536.10.00.40
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Resistance 20mOhm
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.126Lx0.063W x 0.022 H 3.20mmx1.60mmx0.55mm
Series MFU
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Body Material Ceramic
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Mount PCB, Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
