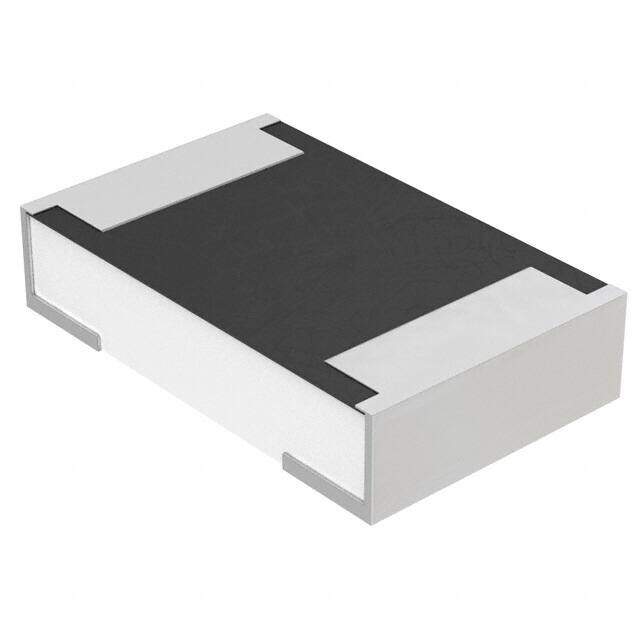

MFU0805FF05000P100 image
Favorite
MFU0805FF05000P100 image
Favorite

MFU0805FF05000P100

Vishay Beyschlag
RoHS
RoHS RoHS compliant
Package 0805 (2012 Metric)
Category Circuit Protection / Fuses
Description Fuse Chip Very Fast Acting 5A 63V SMD Solder Pad 0402 Ceramic T/R Automotive UL
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5368
≥1 USD $0.5368
≥10 USD $0.51744
≥100 USD $0.50072
≥500 USD $0.42152
≥1000 USD $0.349976
≥3000 USD $0.318208
Inventory: 949
Minimum: 1
-
+

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Housing Material Ceramic

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series MFU
Size / Dimension 0.079Lx0.049W x 0.018 H 2.00mmx1.25mmx0.45mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Resistance 15mOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8536.10.00.40
Voltage - Rated DC 32V
Packing Method TAPE AND REEL
Depth 500μm
Current Rating 5A
Case Code (Metric) 2012
Approval Agency UL
Case Code (Imperial) 0805
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.2275
DC Cold Resistance 0.015Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic VERY FAST
Fuse Current 5A

Dimensions

Height 457.2μm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
