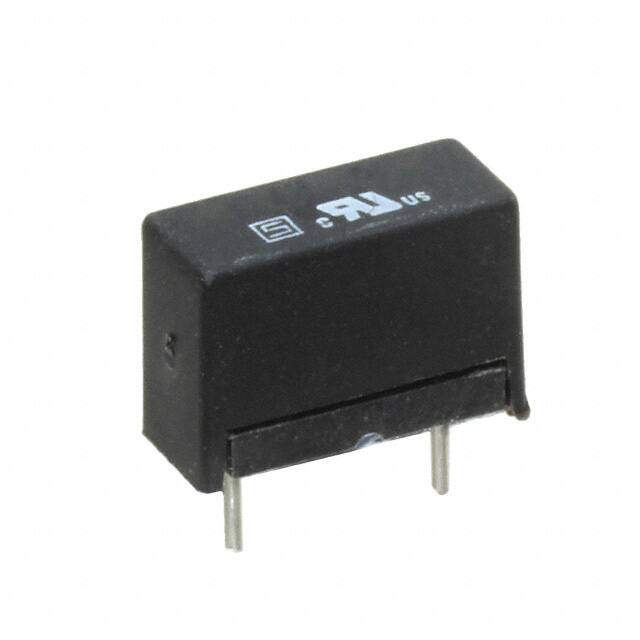

7100.1070.13
RoHS
RoHS compliant
RoHS compliantPackage Radial, Box
Category Circuit Protection / Fuses
Description
Fuses with Leads (Through Hole) FRT 250F 3.15A F 3.5
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2056
≥1 USD $1.2056
≥10 USD $1.1484
≥100 USD $1.01816
≥500 USD $0.6666
Inventory: 57
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Tin
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Box
Terminal Shape PIN WIRE
Number of Pins 2
Material Plastic
Weight 660.005248mg
Body Material Thermoplastic
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series FRT 250F
Size / Dimension 0.453Lx0.197W x 0.315 H 11.50mmx5.00mmx8.00mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
Termination Radial
ECCN Code EAR99
HTS Code 8536.10.00.40
Voltage - Rated DC 250V
Packing Method BAG
Current Rating 3.15A
Reference Standard CCC; CSA; IEC; UL; VDE
Voltage - Rated AC 250V
Approval Agency cURus
Body Length or Diameter 11.5mm
Physical Dimension 11.5mm x 5mm x 8mm
Lead Length 3.5mm
Max Voltage Rating (AC) 250V
Max Voltage Rating (DC) 250V
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Dropout Voltage 95mV
Breaking Capacity @ Rated Voltage 63A
Wire/Cable Diameter 600 μm
Melting I2t 2.4
Circuit Protection Type ELECTRIC FUSE
Joule Integral-Nom 2 J
Pre-arcing Time-Min 1ms
Dimensions
Height 8.001mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
