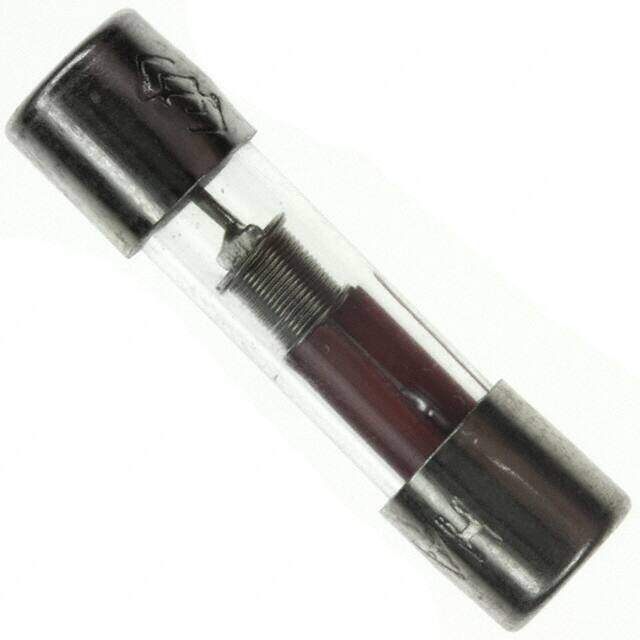

7030.3280
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm
Category Circuit Protection / Fuses
Description
Fuse Miniature Super Time Lag Acting 0.5A 220V Holder Cartridge 5 X 20mm Glass Box
PDF
/
Buying Options
Total Price: USD $8.13
Unit Price: USD $8.1312
≥1 USD $8.1312
Inventory: 12
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Pre-arcing Time-Min 30ms
Joule Integral-Nom 1 J
Blow Characteristic SUPER TIME LAG
Circuit Protection Type ELECTRIC FUSE
Melting I2t 1
Breaking Capacity @ Rated Voltage 60A AC 4kA DC
Fuse Type Cartridge, Glass
Response Time Slow Blow
Power Dissipation 360mW
Max Voltage Rating (AC) 220V
Body Length or Diameter 5mm
Approval Agency UR
Voltage - Rated AC 220V
Current Rating 500mA
Packing Method BOX
Voltage - Rated DC 125V
ECCN Code EAR99
Termination Clip
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Pbfree Code yes
Size / Dimension 0.197Diax0.787L 5.00mmx20.00mm
Series D1TD
Packaging Bulk
Operating Temperature -40°C~70°C
Physical
Weight 1.400013g
Housing Material Glass
Number of Pins 2
Terminal Shape END CAP
Surface Mount NO
Package / Case 5mm x 20mm
Mounting Type Holder
Contact Plating Nickel
Supply Chain
Factory Lead Time 35 Weeks
