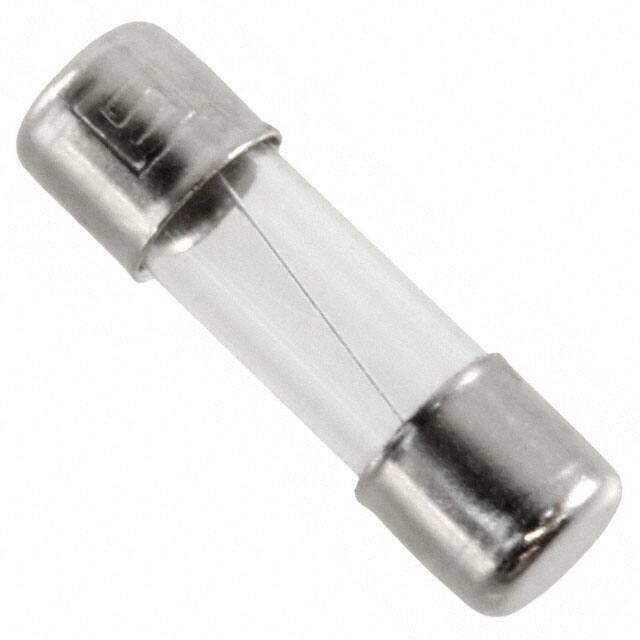

7010.9968.63
RoHS
RoHS compliant
RoHS compliantPackage Cartridge, Non-Standard
Category Circuit Protection / Fuses
Description
FUSE BOARD MOUNT 5A 125VAC/VDC
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.364
≥1 USD $1.364
≥10 USD $1.29272
≥100 USD $1.14576
≥500 USD $0.7502
Inventory: 1156
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Body Height 7mm
Diameter 2mm
Technical
Pre-arcing Time-Min 10ms
Joule Integral-Nom 29 J
Blow Characteristic TIME LAG
Circuit Protection Type ELECTRIC FUSE
Melting I2t 29
Breaking Capacity @ Rated Voltage 50A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Max Voltage Rating (DC) 125V
Power Dissipation 620mW
Max Voltage Rating (AC) 125V
Approval Agency cURus
Voltage - Rated AC 125V
Reference Standard CSA; IEC; UL
Current Rating 5A
Packing Method BAG
Voltage - Rated DC 125V
HTS Code 8536.10.00.40
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.079Diax0.276L 2.00mmx7.00mm
Series MSB
Packaging Bulk
Operating Temperature -55°C~85°C
Physical
Weight 69.994973mg
Housing Material Ceramic
Number of Pins 2
Mounting Feature SURFACE MOUNT
Terminal Shape END CAP
Surface Mount YES
Package / Case Cartridge, Non-Standard
Mounting Type Holder
Contact Plating Tin
Supply Chain
Factory Lead Time 50 Weeks
