7010.3520
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm
Category Circuit Protection / Fuses
Description

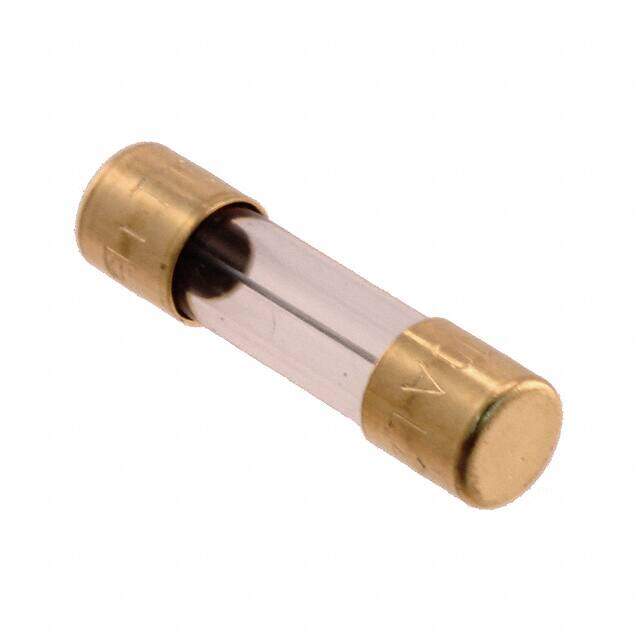

FUSE GLASS 8A 32VAC 5X20MM
PDF
/
Buying Options
Total Price: USD $2.54
Unit Price: USD $2.5432
≥1 USD $2.5432
≥10 USD $2.41472
≥100 USD $2.14104
≥500 USD $1.285698
≥1000 USD $1.177
Inventory: 212
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Diameter 5.2mm
Technical
Joule Integral-Nom 79 J
Blow Characteristic VERY FAST
Circuit Protection Type ELECTRIC FUSE
Melting I2t 79
Breaking Capacity @ Rated Voltage 300A
Fuse Type Cartridge, Glass
Response Time Fast Blow
Max Voltage Rating (AC) 32V
Voltage - Rated AC 32V
Reference Standard NNO
Current Rating 8A
Packing Method BOX
Voltage - Rated 32V
ECCN Code EAR99
Termination Clip
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Pbfree Code yes
Size / Dimension 0.197Diax0.787L 5.00mmx20.00mm
Series D1
Packaging Bulk
Operating Temperature -40°C~70°C
Physical
Weight 1.200007g
Number of Pins 2
Terminal Shape END CAP
Surface Mount NO
Package / Case 5mm x 20mm
Mounting Type Holder
Contact Plating Nickel
Supply Chain
Factory Lead Time 19 Weeks
