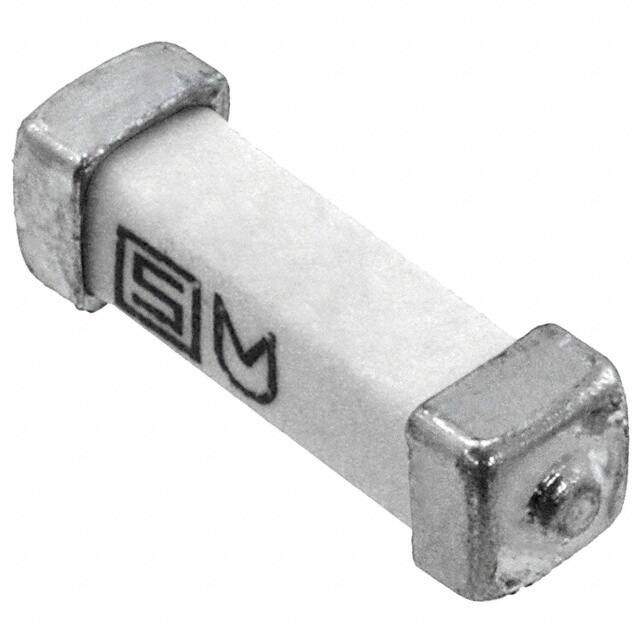

3405.0176.11
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, Square End Block
Category Circuit Protection / Fuses
Description
Surface Mount Fuses UMF 250 FUSE 10A F SMT
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
≥10 USD $0.594
≥100 USD $0.5786
Inventory: 545
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 3mm
Technical
Joule Integral-Nom 2 J
Circuit Protection Type ELECTRIC FUSE
Melting I2t 45.8
Breaking Capacity @ Rated Voltage 100A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Max Voltage Rating (DC) 125V
Max Voltage Rating (AC) 250V
Physical Dimension 10.1mm x 3mm x 3.75mm
Body Length or Diameter 10.1mm
Approval Agency cURus
Voltage - Rated AC 2V
Reference Standard UL
Current Rating 10A
Packing Method BAG
Voltage - Rated DC 250V
HTS Code 8536.10.00.40
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
JESD-609 Code e3
Size / Dimension 0.398Lx0.118W x 0.118 H 10.10mmx3.00mmx3.00mm
Series UMF 250
Packaging Strip
Operating Temperature -55°C~125°C
Physical
Terminal Material Copper
Body Material Ceramic
Terminal Shape END CAP
Package / Case 2-SMD, Square End Block
Mounting Type Surface Mount
Mount PCB, Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 18 Weeks
