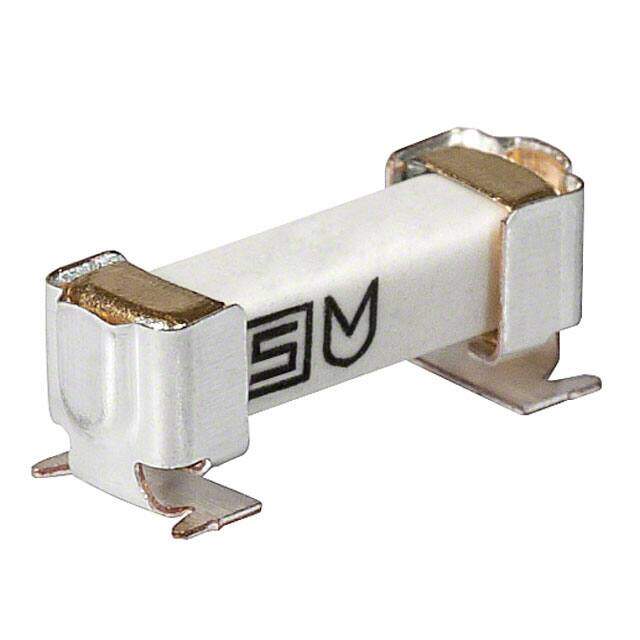

3404.2467.22
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, Square End Block with Clip
Category Circuit Protection / Fuses
Description
FUSE BRD MNT 250VAC/125VDC 2SMD
PDF
/
Buying Options
Total Price: USD $0.95
Unit Price: USD $0.9504
≥1 USD $0.9504
≥10 USD $0.86504
≥100 USD $0.8426
Inventory: 1059
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2-SMD, Square End Block with Clip
Number of Pins 2
Body Material Ceramic
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series UMK 250
Size / Dimension 0.445Lx0.165W x 0.157 H 11.30mmx4.20mmx4.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
ECCN Code EAR99
Voltage - Rated DC 125V
Packing Method TAPE AND REEL
Current Rating 1.25A
Reference Standard CSA, IEC, UL, VDE
Voltage - Rated AC 250V
Approval Agency cURus, VDE
Max Voltage Rating (AC) 250V
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 200A AC 100A DC
Melting I2t 1
Circuit Protection Type ELECTRIC FUSE
Dimensions
Height 3.9878mm
Compliance
RoHS Status ROHS3 Compliant
