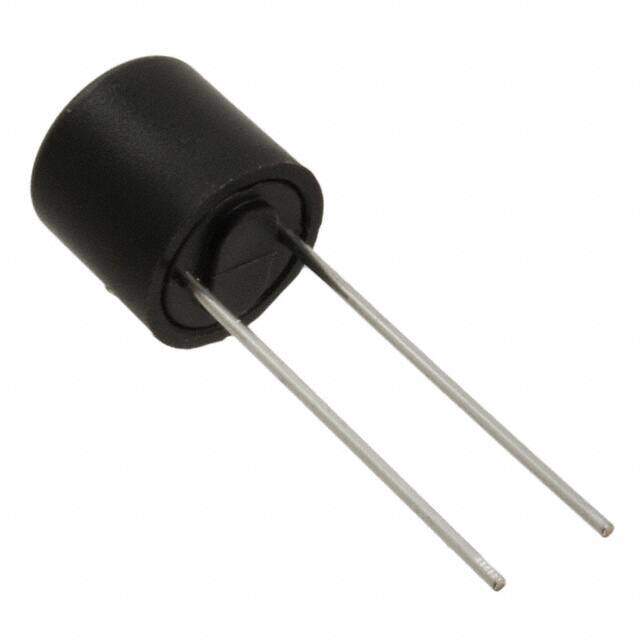

0034.7220
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can, Vertical
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 3.15A 250VAC RAD
PDF
/
Inventory: 4276
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 35 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can, Vertical
Terminal Shape PIN WIRE
Number of Pins 2
Body Material Thermoplastic
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series MSTU 250
Size / Dimension 0.335Dia x 0.335 H 8.50mmx8.50mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
ECCN Code EAR99
Voltage - Rated 250V
HTS Code 8536.10.00.40
Current Rating 3.15A
Reference Standard CCC; CSA; UL
Voltage - Rated AC 250V
Approval Agency cULus
Body Length or Diameter 8.5mm
Physical Dimension 8.5mm x 8.5mm
Max Voltage Rating (AC) 250V
Current 3.12A
Power Dissipation 240mW
Response Time Slow Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 50A
Wire/Cable Diameter 640 μm
Melting I2t 55
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic TIME LAG
Joule Integral-Nom 55 J
Pre-arcing Time-Min 60000ms
Dimensions
Height 8.509mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
