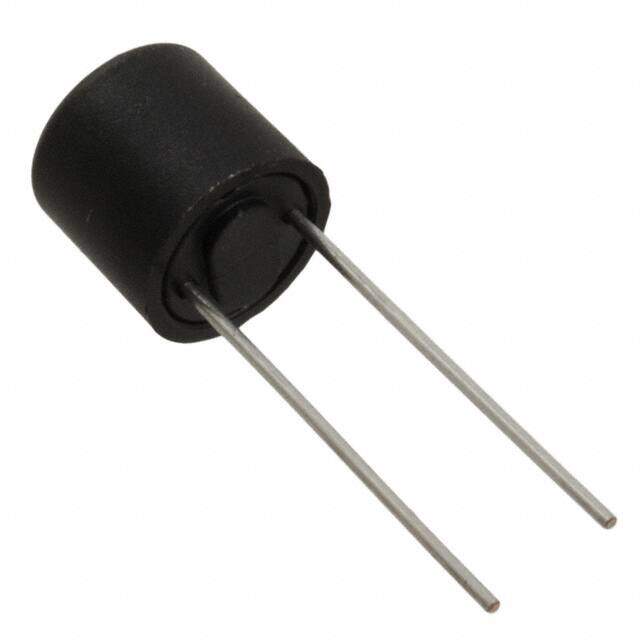

0034.6709
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can, Vertical
Category Circuit Protection / Fuses
Description
Fuses with Leads (Through Hole) MST 250 250mA T 18.8
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.36344
≥100 USD $0.34672
≥500 USD $0.318842
Inventory: 492
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 8.509mm
Technical
Blow Characteristic TIME LAG
Circuit Protection Type ELECTRIC FUSE
Melting I2t 0.6
Wire/Cable Diameter 640 μm
Breaking Capacity @ Rated Voltage 35A AC 50A DC
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Current 250mA
Max Voltage Rating (AC) 250V
Physical Dimension 8.5mm x 8.5mm
Body Length or Diameter 8.5mm
Approval Agency CCC, cURus, KC, VDE
Voltage - Rated AC 250V
Reference Standard CCC; CSA; IEC; KTL; UL; VDE
Current Rating 250mA
Voltage - Rated DC 125V
HTS Code 8536.10.00.40
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.335Dia x 0.335 H 8.50mmx8.50mm
Series MST 250
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Body Material Thermoplastic
Weight 529.994335mg
Number of Pins 2
Terminal Shape PIN WIRE
Package / Case Radial, Can, Vertical
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 35 Weeks
