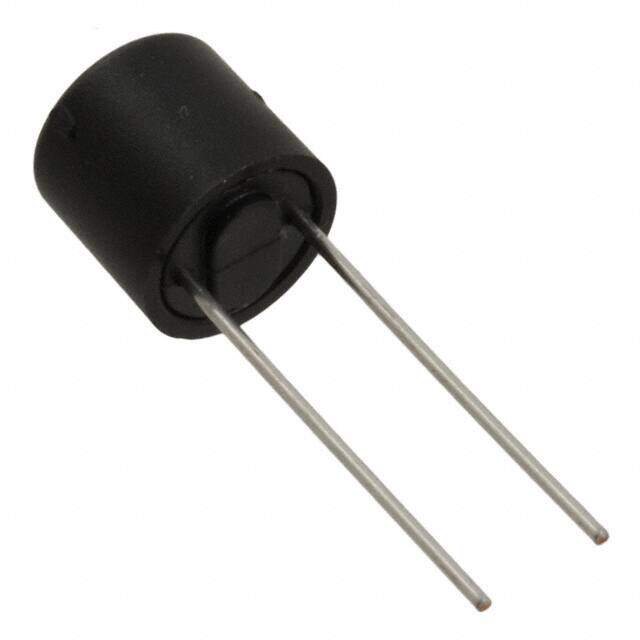

0034.6049
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can, Vertical
Category Circuit Protection / Fuses
Description
Fuses with Leads (Through Hole) MSF 250 3.15 A F 18.8
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3344
≥1 USD $0.3344
≥10 USD $0.30272
≥100 USD $0.294008
Inventory: 124
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 8.509mm
Diameter 8.5mm
Technical
Joule Integral-Nom 5 J
Blow Characteristic VERY FAST
Circuit Protection Type ELECTRIC FUSE
Melting I2t 5.4
Wire/Cable Diameter 640 μm
Breaking Capacity @ Rated Voltage 35A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Max Voltage Rating (DC) 250V
Current 3.15A
Max Voltage Rating (AC) 250V
Physical Dimension 8.5mm x 8.5mm
Approval Agency CCC, cURus, VDE
Voltage - Rated AC 250V
Reference Standard CCC; CSA; IEC; UL; VDE
Current Rating 3.15A
Voltage - Rated DC 250V
HTS Code 8536.10.00.40
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.335Dia x 0.335 H 8.50mmx8.50mm
Series MSF 250
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Body Material Thermoplastic
Weight 500.000539mg
Number of Pins 2
Terminal Shape PIN WIRE
Package / Case Radial, Can, Vertical
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 10 Weeks
