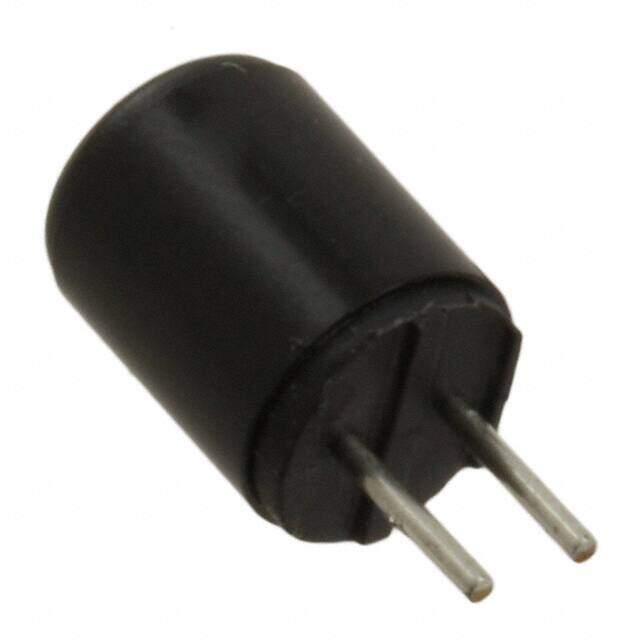

0034.4220

Schurter Inc.
RoHS
RoHS RoHS compliant
Package Radial, Can
Category Circuit Protection / Fuses
Description Fuses with Leads (Through Hole) MSF 125 800mA F 4.3
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.9448
≥1 USD $1.9448
≥10 USD $1.628
≥100 USD $1.24432
≥500 USD $1.1396
Inventory: 110
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height 8.7884mm
Diameter 6.4mm

Technical

Pre-arcing Time-Min 4ms
Blow Characteristic VERY FAST
Circuit Protection Type ELECTRIC FUSE
Melting I2t 0.04
Breaking Capacity @ Rated Voltage 100A
Dropout Voltage 150mV
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Max Voltage Rating (DC) 125V
Current 800mA
Max Voltage Rating (AC) 125V
Physical Dimension 6.4mm x 8.8mm
Approval Agency cURus
Voltage - Rated AC 125V
Reference Standard CCC; CSA; UL
Current Rating 800mA
Packing Method BAG
Voltage - Rated DC 125V
HTS Code 8536.10.00.40
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.252Dia x 0.346 H 6.40mmx8.80mm
Series MSF 125
Packaging Bulk
Operating Temperature -25°C~85°C

Physical

Body Material Thermoplastic
Weight 339.995831mg
Material Copper, Plastic, Tin
Number of Pins 2
Terminal Shape PIN WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 13 Weeks
