0034.3117.G
RoHS
RoHS compliant
RoHS compliantPackage 5mm x 20mm
Category Circuit Protection / Fuses
Description
Fuse Miniature Slow Blow Acting 1A 250V Holder Cartridge 5 X 20mm Glass Bulk
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.3432
≥1 USD $0.3432
≥10 USD $0.28336
≥100 USD $0.21648
≥500 USD $0.198
Inventory: 1089
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Contact Plating Nickel
Mounting Type Holder
Package / Case 5mm x 20mm
Surface Mount NO
Terminal Shape END CAP
Number of Pins 2
Weight 940.013488mg
Body Material Glass
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series FST 5x20

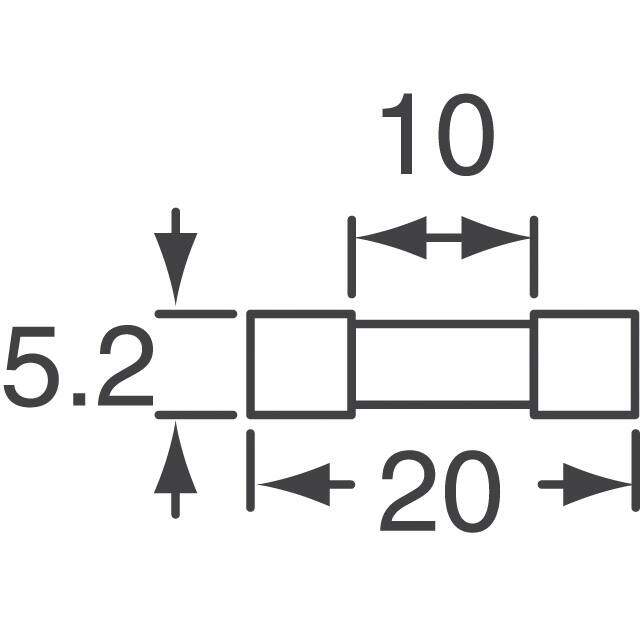

Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
Termination Clip
ECCN Code EAR99
Voltage - Rated 250V
Current Rating 1A
Reference Standard CCC; CSA; IEC; PSE; UL; VDE
Voltage - Rated AC 250V
Approval Agency CCC, cURus, PSE/JET, VDE
Max Voltage Rating (AC) 250V
Power Dissipation 1.6W
Response Time Slow Blow
Fuse Type Cartridge, Glass
Breaking Capacity @ Rated Voltage 35A
Melting I2t 3.3
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic TIME LAG
Joule Integral-Nom 3 J
Fuse Class L
Dimensions
Diameter 5.2mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
