0034.2512

Schurter Inc.
RoHS
RoHS RoHS compliant
Package 5mm x 20mm
Category Circuit Protection / Fuses

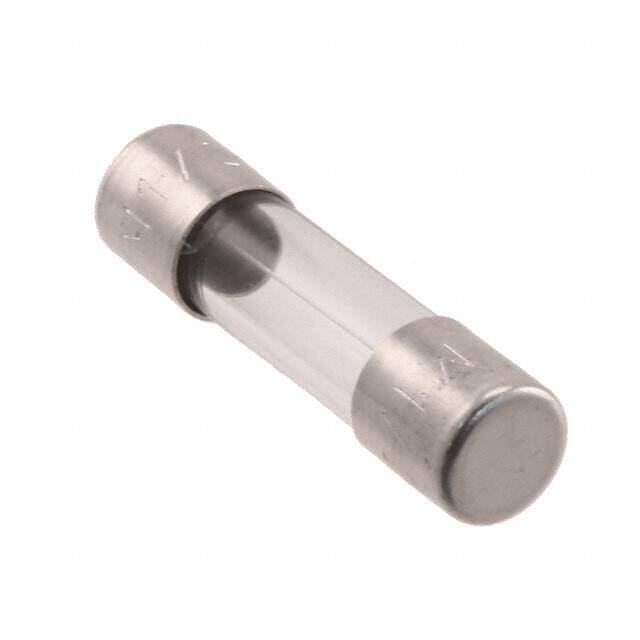

Description Cartridge Fuses FSM 5X20 250V 400mA
PDF
/
Buying Options
Total Price: USD $0.95
Unit Price: USD $0.9504
≥1 USD $0.9504
≥10 USD $0.79816
≥100 USD $0.60984
≥500 USD $0.5588
Inventory: 1004
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Diameter 5.2mm

Technical

Pre-arcing Time-Min 5ms
Blow Characteristic MEDIUM TIME LAG
Circuit Protection Type ELECTRIC FUSE
Melting I2t 0.632
Breaking Capacity @ Rated Voltage 80A
Fuse Type Cartridge, Glass
Response Time Medium Blow
Power Dissipation 200mW
Current 400mA
Max Voltage Rating (AC) 250V
Voltage - Rated AC 250V
Reference Standard DIN
Current Rating 400mA
Packing Method BOX
Voltage - Rated DC 125V
ECCN Code EAR99
Termination Clip
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Pbfree Code yes
Size / Dimension 0.205Diax0.787L 5.20mmx20.00mm
Series FSM 5x20
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Body Material Glass
Weight 919.998724mg
Number of Pins 2
Terminal Shape END CAP
Surface Mount NO
Package / Case 5mm x 20mm
Mounting Type Holder
Contact Plating Nickel

Supply Chain

Factory Lead Time 19 Weeks
