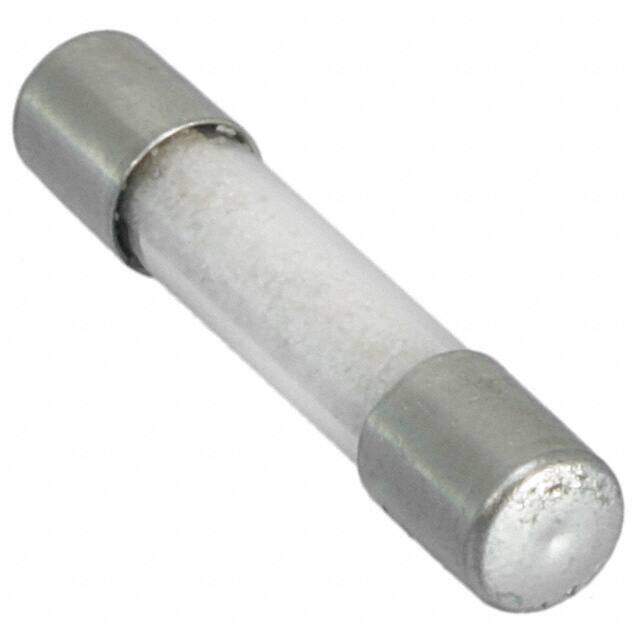

0034.1003

Schurter Inc.
RoHS
RoHS RoHS compliant
Package 3AB, 3AG, 1/4 x 1-1/4
Category Circuit Protection / Fuses
Description Cartridge Fuses SA FF 250V 2.5A
PDF
/
Buying Options
Total Price: USD $4.54
Unit Price: USD $4.5408
≥1 USD $4.5408
Inventory: 31
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Body Height 31.8mm
Diameter 6.35mm

Technical

Pre-arcing Time-Min 5ms
Joule Integral-Nom 2000 J
Blow Characteristic SUPER FAST
Circuit Protection Type ELECTRIC FUSE
Melting I2t 2
Breaking Capacity @ Rated Voltage 1.5kA
Fuse Type Cartridge, Glass
Response Time Fast Blow
Current 2.5A
Max Voltage Rating (AC) 250V
Physical Dimension 6.35mm x 31.8mm
Voltage - Rated AC 250V
Current Rating 2.5A
Packing Method BOX
Voltage - Rated 250V
ECCN Code EAR99
Termination Clip
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Pbfree Code yes
Size / Dimension 0.250Diax1.252L 6.35mmx31.80mm
Series SA 6.3x32
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Body Material Glass
Weight 2.540004g
Terminal Shape END CAP
Surface Mount NO
Package / Case 3AB, 3AG, 1/4 x 1-1/4
Mounting Type Holder
Contact Plating Nickel

Supply Chain

Factory Lead Time 7 Weeks
