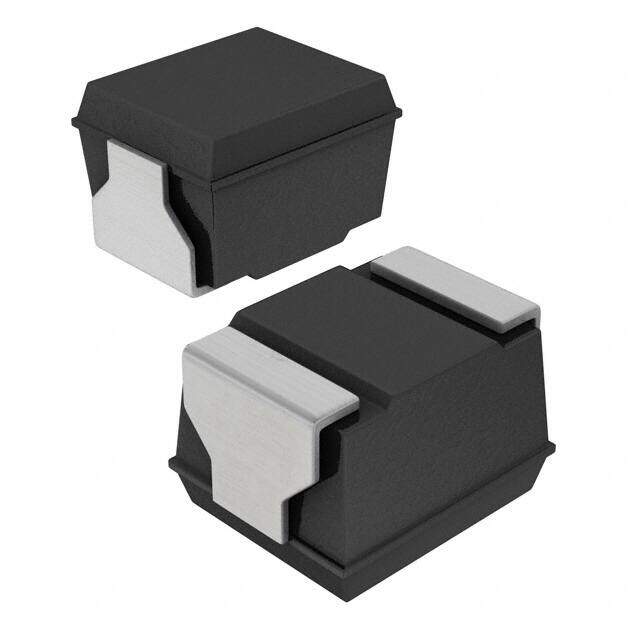

ICP-S0.7TN
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Circuit Protection / Fuses
Description
FUSE BRD MNT 700MA 50VAC/VDC SMD
PDF
/
Buying Options
Total Price: USD $0.07
Unit Price: USD $0.0665
≥1 USD $0.0665
≥10 USD $0.0551
≥100 USD $0.0532
≥500 USD $0.0513
≥1000 USD $0.0494
Inventory: 2890
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 2mm
Technical
Trigger Device Type SILICON SURGE PROTECTOR
DC Cold Resistance 0.084Ohm
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Configuration SINGLE
Number of Elements 1
Qualification Status Not Qualified
Voltage - Rated AC 50V
JESD-30 Code R-PDSO-C2
Time@Peak Reflow Temperature-Max (s) 10
Current Rating 700mA
Peak Reflow Temperature (Cel) 260
Terminal Form C BEND
Terminal Position DUAL
Voltage - Rated DC 50V
HTS Code 8541.30.00.80
Additional Feature UL RECOGNIZED
Terminal Finish TIN COPPER
Resistance 84mOhm
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Size / Dimension 0.118Lx0.098W x 0.079 H 3.00mmx2.50mmx2.00mm
Series ICP-S
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Package / Case 2-SMD, J-Lead
Mounting Type Surface Mount
Mount Surface Mount
