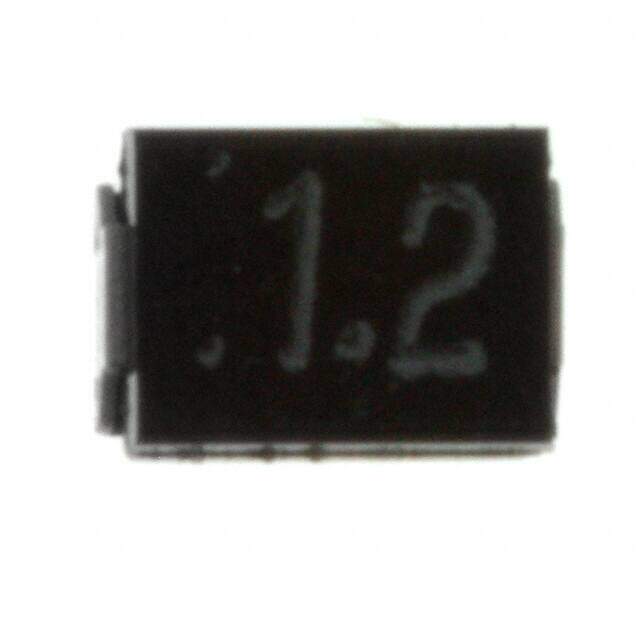

UNHS20300L
RoHS
/
Package 2-SMD, J-Lead
Category Circuit Protection / Fuses
Description
FUSE BRD MNT 1.2A 50VAC/VDC SMD
PDF
/
Inventory: 4592
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Published 2004
Series UNHS200
Size / Dimension 0.118Lx0.091W x 0.087 H 3.00mmx2.30mmx2.20mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Resistance 45mOhm
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Voltage - Rated DC 50V
Current Rating (Amps) 1.2A
Current Rating 1.2A
Voltage - Rated AC 50V
Current 1.2A
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
DC Cold Resistance 0.045Ohms
Dimensions
Height 2.2098mm
Length 2.9972mm
Width 2.3114mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
