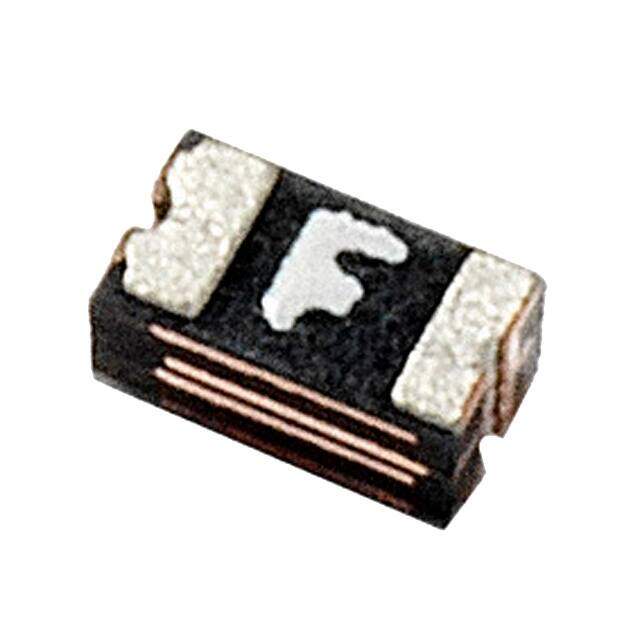

ERB-SE5R00U
RoHS
/
Package 0603 (1608 Metric)
Category Circuit Protection / Fuses
Description
Surface Mount Fuses Micro Chip Fuse0603
PDF
/
Inventory: 8009
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Technical
Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Published 2006
Series ERBSE
Size / Dimension 0.063Lx0.031W x 0.028 H 1.60mmx0.80mmx0.70mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Resistance 20mOhm
HTS Code 8536.10.00.40
Voltage - Rated DC 32V
Packing Method TAPE AND REEL
Reach Compliance Code unknown
Current Rating 5A
Case Code (Metric) 1608
Approval Agency cUL, UL
Body Length or Diameter 1.6mm
Case Code (Imperial) 0603
Body Breadth 0.8 mm
Physical Dimension 1.6mm x 0.8mm x 0.7mm
Current 5A
Response Time Fast Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 35A
DC Cold Resistance 0.02Ohm
Circuit Protection Type ELECTRIC FUSE
Dimensions
Height 787.4μm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
