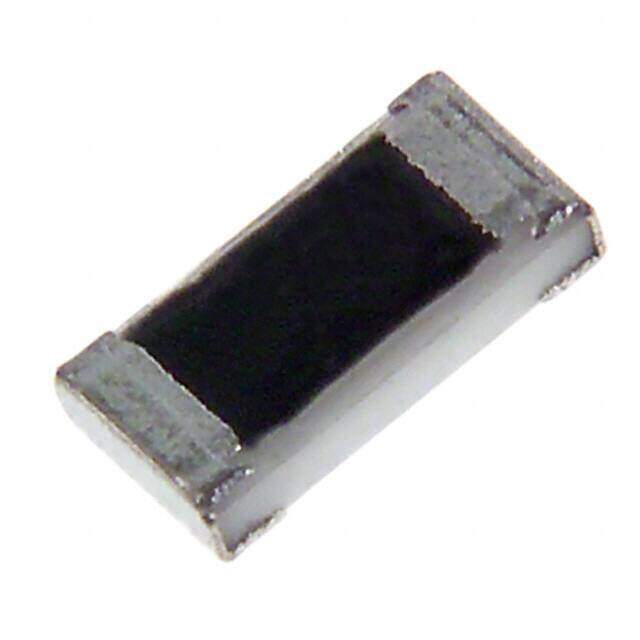

FCD120800TP
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 800MA 50VDC 1206
PDF
/
Inventory: 4687
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 609.6μm
Technical
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.14Ohm
Melting I2t 0.0033
Breaking Capacity @ Rated Voltage 50A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Physical Dimension 3.2mm x 1.6mm x 0.6mm
Body Breadth 1.6 mm
Case Code (Imperial) 1206
Body Length or Diameter 3.2mm
Approval Agency cULus
Case Code (Metric) 3216
Reference Standard IEC; UL
Current Rating 800mA
Reach Compliance Code unknown
Packing Method TAPE AND REEL
Voltage - Rated DC 50V
HTS Code 8536.10.00.40
Terminal Finish TIN
Resistance 140mOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Size / Dimension 0.126Lx0.063W x 0.024 H 3.20mmx1.60mmx0.60mm
Series FCD12
Published 2003
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Terminal Shape WRAPAROUND
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Mount Surface Mount
