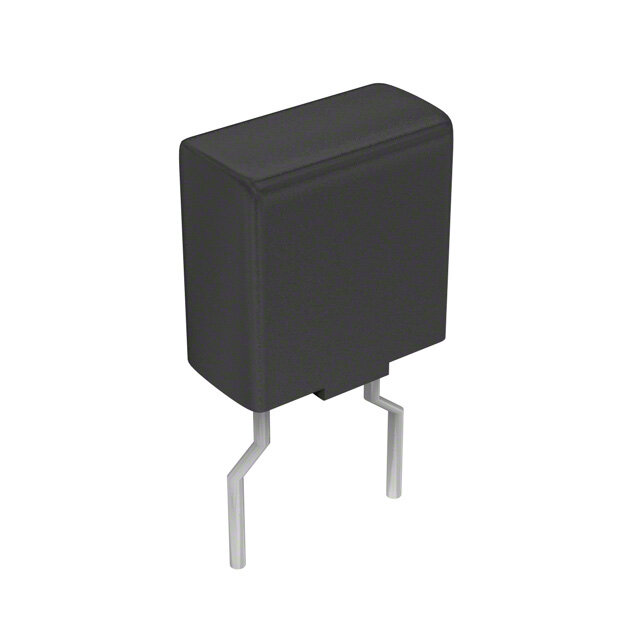

80815000075 image
Favorite
80815000075 image
Favorite

80815000075

Littelfuse Inc.
RoHS
RoHS RoHS compliant
Package Radial, Box
Category Circuit Protection / Fuses
Description FUSE BOARD MNT 5A 250VAC/VDC RAD
PDF
/
Inventory: 6815
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 4.65mm

Technical

Trip Time or Delay 14400 s
Joule Integral-Nom 1 J
Fuse Size TE5
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.026Ohm
Melting I2t 1.1584
Breaking Capacity @ Rated Voltage 100A AC 10kA DC
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Physical Dimension 8.9mm x 4.65mm x 8.85mm
Body Length or Diameter 8.9mm
Approval Agency cULus
Voltage - Rated AC 250V
Reference Standard UL
Current Rating 5A
Reach Compliance Code unknown
Depth 4.65mm
Voltage - Rated DC 250V
HTS Code 8536.10.00.40
Terminal Finish Tin (Sn)
Resistance 26mOhm
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.350Lx0.183W x 0.350 H 8.90mmx4.65mmx8.90mm
Series TE5? 808
Published 2009
Packaging Bulk
Operating Temperature -40°C~125°C

Physical

Housing Material Thermoplastic
Terminal Shape PIN WIRE
Package / Case Radial, Box
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 17 Weeks
