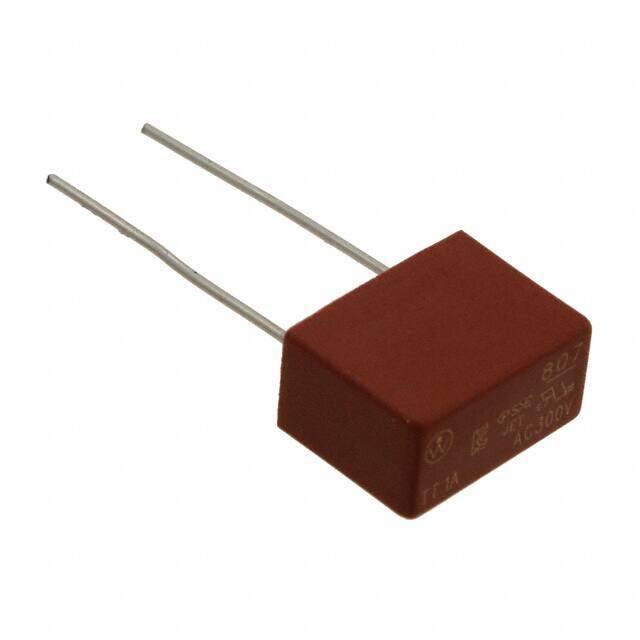

80711000000
RoHS
RoHS compliant
RoHS compliantPackage Radial, Box
Category Circuit Protection / Fuses
Description
FUSE, 1A, TE7, TIME LAG, 300V, RADIAL
PDF
/
Inventory: 9570
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 9.1948mm
Technical
Fuse Current 1A
Joule Integral-Nom 19 J
Fuse Size TE7
Blow Characteristic TIME LAG
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.1166Ohm
Melting I2t 19.8
Breaking Capacity @ Rated Voltage 100A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Power Dissipation 324mW
Physical Dimension 12.4mm x 6.4mm x 9.2mm
Body Length or Diameter 12.4mm
Approval Agency cULus, KC, PSE/JET
Voltage - Rated AC 300V
Reference Standard CUL; KC; IEC; PSE; UL
Current Rating 1A
Depth 6.4mm
Packing Method AMMO PACK; TAPE AND REEL
Voltage - Rated DC 300V
HTS Code 8536.10.00.40
Terminal Finish Tin (Sn)
Resistance 116.6mOhm
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.488Lx0.252W x 0.362 H 12.40mmx6.40mmx9.20mm
Series TE7 807
Published 2011
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Terminal Shape PIN WIRE
Package / Case Radial, Box
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 17 Weeks
