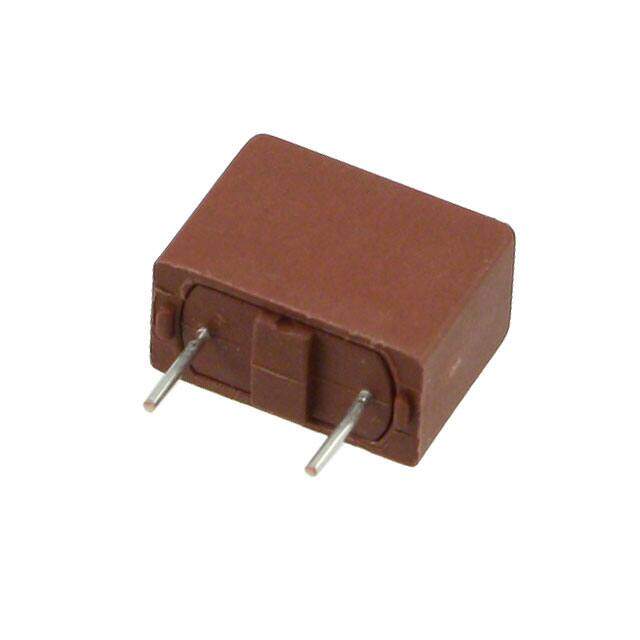

80408000440
RoHS
RoHS compliant
RoHS compliantPackage Radial, Box
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 800MA 250VAC RAD
PDF
/
Buying Options
Total Price: USD $3.41
Unit Price: USD $3.4144
≥1 USD $3.4144
≥10 USD $3.30528
≥100 USD $3.19088
≥500 USD $2.506944
≥1000 USD $2.051192
≥3000 USD $1.994186
Inventory: 1017
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 9.1948mm
Technical
Fuse Current 800mA
Joule Integral-Nom 12 J
Fuse Size TE7
Blow Characteristic TIME LAG
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.1887Ohm
Melting I2t 12
Breaking Capacity @ Rated Voltage 150A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Lead Diameter 600 μm
Lead Length 4.3mm
Lead Pitch 7.5mm
Approval Agency CQC, KC, UL, VDE
Voltage - Rated AC 250V
Reference Standard CQC; IEC; KC; PSE; UMF; VDE
Current Rating 800mA
Depth 6.4mm
Voltage - Rated DC 250V
HTS Code 8536.10.00.40
Terminal Finish Tin (Sn)
Resistance 188.7mOhm
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.488Lx0.252W x 0.362 H 12.40mmx6.40mmx9.20mm
Series 804
Published 2011
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Terminal Shape PIN WIRE
Package / Case Radial, Box
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 17 Weeks
