40011600000
RoHS
RoHS compliant
RoHS compliantPackage Radial, Box
Category Circuit Protection / Fuses
Description

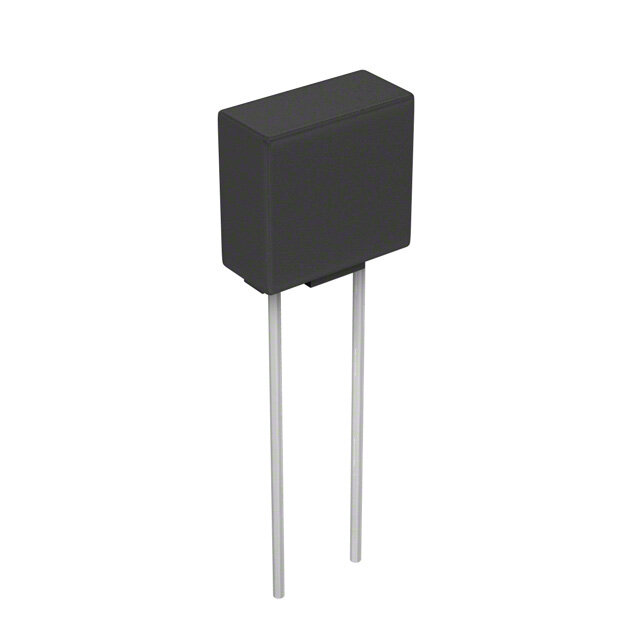

FUSE BRD MNT 1.6A 250VAC RADIAL
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.3376
≥1 USD $1.3376
≥10 USD $1.2936
≥100 USD $1.21088
≥500 USD $1.001968
≥1000 USD $0.834944
≥3000 USD $0.81407
Inventory: 478
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 8.001mm
Technical
Fuse Current 1.6A
Joule Integral-Nom 21 J
Blow Characteristic TIME LAG
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.0384Ohm
Melting I2t 21.75
Breaking Capacity @ Rated Voltage 130A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Lead Length 18.8mm
Physical Dimension 8.5mm x 4mm x 8mm
Body Length or Diameter 8.5mm
Approval Agency CQC, cURus, KC, PSE/JET, VDE
Voltage - Rated AC 250V
Reference Standard IEC; PSE; UL; VDE
Current Rating 1.6A
Reach Compliance Code unknown
Depth 4mm
Packing Method AMMO PACK; TAPE AND REEL
Voltage - Rated DC 250V
HTS Code 8536.10.00.40
Terminal Finish Tin (Sn)
Resistance 38.35mOhm
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.335Lx0.158W x 0.315 H 8.50mmx4.00mmx8.00mm
Series TE5? 400
Published 2009
Packaging Tape & Box (TB)
Operating Temperature -40°C~85°C
Physical
Housing Material Thermoplastic
Terminal Shape PIN WIRE
Package / Case Radial, Box
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
