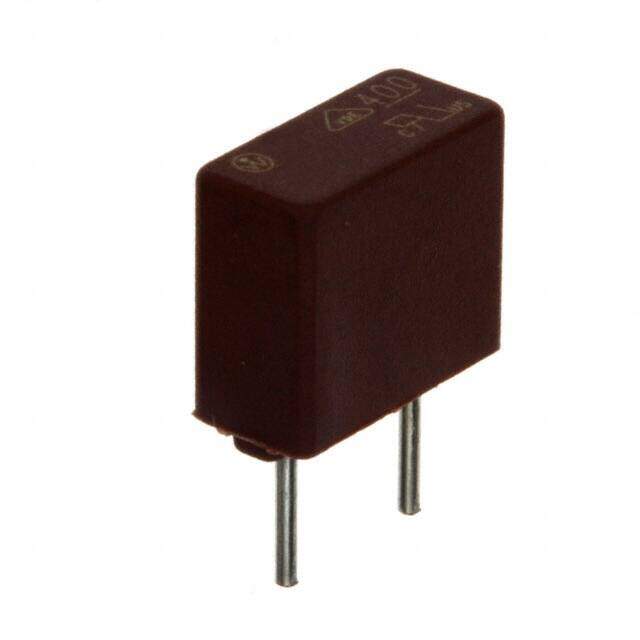

40011000440
RoHS
RoHS compliant
RoHS compliantPackage Radial, Box
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 1A 250VAC RADIAL
PDF
/
Buying Options
Total Price: USD $1.08
Unit Price: USD $1.076574
≥1 USD $1.076574
≥10 USD $1.015643
≥100 USD $0.958145
≥500 USD $0.903911
≥1000 USD $0.852754
Inventory: 3180
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Box
Terminal Shape PIN WIRE
Body Material Thermoplastic
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2009
Series TE5? 400
Size / Dimension 0.335Lx0.157W x 0.315 H 8.50mmx4.00mmx8.00mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
ECCN Code EAR99
Resistance 80.8mOhm
Terminal Finish Tin (Sn)
Voltage - Rated 250V
HTS Code 8536.10.00.40
Depth 4mm
Current Rating 1A
Reference Standard IEC; PSE; UL; VDE
Voltage - Rated AC 250V
Approval Agency CQC, cURus, KC, PSE/JET, VDE
Body Length or Diameter 8.5mm
Physical Dimension 8.5mm x 4mm x 8mm
Lead Length 4.3mm
Power Dissipation 432mW
Response Time Slow Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 130A
Melting I2t 10.7
DC Cold Resistance 0.0808Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic TIME LAG
Joule Integral-Nom 9 J
Fuse Current 1A
Dimensions
Height 8.001mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
