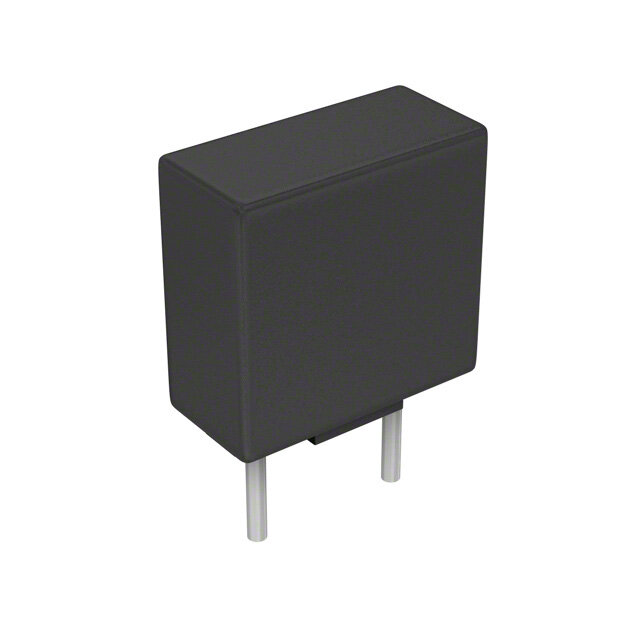

39211600440
RoHS
RoHS compliant
RoHS compliantPackage Radial, Box
Category Circuit Protection / Fuses
Description
Fuses with Leads (Through Hole) 250V IEC TL SL 1.6A TE5
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.3696
≥1 USD $0.3696
≥10 USD $0.35728
≥100 USD $0.34584
≥500 USD $0.291104
≥1000 USD $0.241648
≥3000 USD $0.219718
Inventory: 415
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Box
Terminal Shape PIN WIRE
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Published 2009
Series TE5? 392
Size / Dimension 0.335Lx0.157W x 0.315 H 8.50mmx4.00mmx8.00mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Radial
ECCN Code EAR99
Resistance 40mOhm
Terminal Finish Tin (Sn)
Color Brown
HTS Code 8536.10.00.40
Voltage - Rated DC 250V
Depth 4mm
Current Rating 1.6A
Reference Standard CQC; KTL; PSE; SEMKO; UL; VDE
Voltage - Rated AC 250V
Approval Agency CQC, cULus, KC, PSE/JET, SEMKO, VDE
Body Length or Diameter 8.5mm
Physical Dimension 8.5mm x 4mm x 8mm
Current 1.6A
Power Dissipation 600mW
Response Time Slow Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 25A
Melting I2t 13.5
DC Cold Resistance 0.04Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic TIME LAG
Fuse Size TE5
Joule Integral-Nom 13 J
Fuse Current 1.6A
Dimensions
Height 8.001mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
