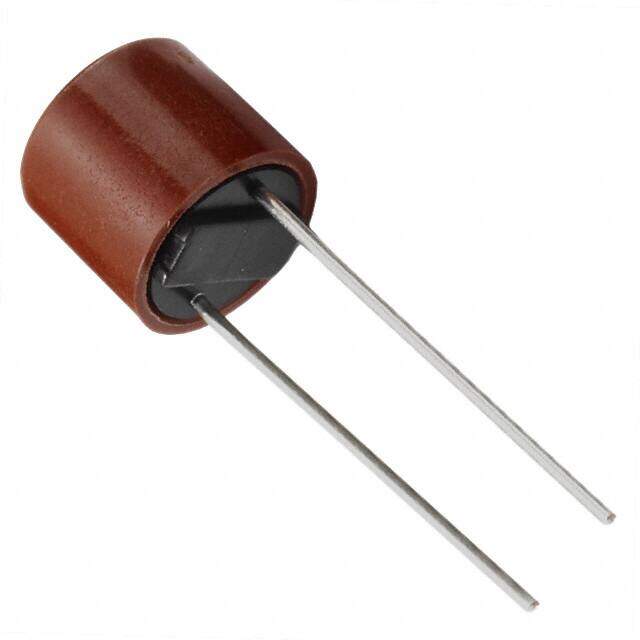

38211600000
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can, Vertical
Category Circuit Protection / Fuses
Description
LITTELFUSE 38211600000FUSE, 250V, IEC TR5 LAG, AMMO, 1.6A
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.9064
≥1 USD $0.9064
≥10 USD $0.88
≥100 USD $0.8228
≥500 USD $0.680944
≥1000 USD $0.567424
≥3000 USD $0.553238
Inventory: 1126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can, Vertical
Terminal Shape PIN WIRE
Housing Material Thermoplastic
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Box (TB)
Published 2009
Series TR5? 382
Size / Dimension 0.335Dia x 0.315 H 8.50mmx8.00mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
ECCN Code EAR99
Resistance 37.7mOhm
Terminal Finish Tin (Sn)
Color Brown
HTS Code 8536.10.00.40
Voltage - Rated DC 250V
Packing Method AMMO PACK; TAPE AND REEL
Current Rating 1.6A
Reference Standard CCC; KTL; PSE; SEMKO; UL; VDE
Voltage - Rated AC 250V
Approval Agency CCC, cURus, KC, PSE/JET, SEMKO, VDE
Physical Dimension 8.5mm x 8mm
Working Voltage 250V
Current 1.6A
Power Dissipation 490mW
Response Time Slow Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 100A
Melting I2t 12.67
DC Cold Resistance 0.0377Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic TIME LAG
Fuse Size TR5
Joule Integral-Nom 9 J
Fuse Current 1.6A
Pre-arcing Rating 9 A2/s
Dimensions
Diameter 8.5 mm
Height 8.001mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
