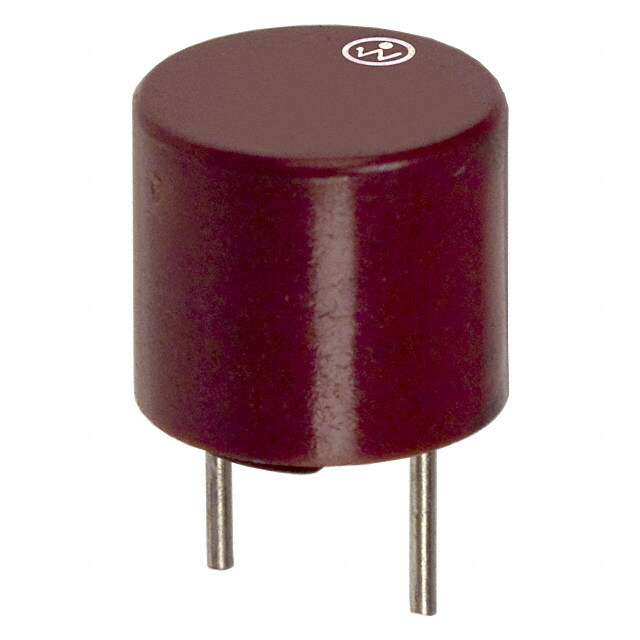

38211250430
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can, Vertical
Category Circuit Protection / Fuses
Description
Fuses with Leads (Through Hole) 250V IEC TL SL 1.25A TR5
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.83776
≥100 USD $0.78408
≥500 USD $0.648736
≥1000 USD $0.54054
≥3000 USD $0.527032
Inventory: 528
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 8.001mm
Technical
Pre-arcing Rating 4.5 A2/s
Joule Integral-Nom 4 J
Fuse Size TR5
Blow Characteristic TIME LAG
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.05Ohm
Melting I2t 6.88
Breaking Capacity @ Rated Voltage 100A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Power Dissipation 465mW
Current 1.25A
Physical Dimension 8.5mm x 8mm
Body Length or Diameter 8.5mm
Approval Agency CCC, cURus, KC, PSE/JET, SEMKO, VDE
Voltage - Rated AC 250V
Reference Standard CCC; KC; PSE; SEMKO; UL; VDE
Current Rating 1.25A
Reach Compliance Code unknown
HTS Code 8536.10.00.40
Terminal Finish Tin (Sn)
Resistance 50mOhm
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e3
Size / Dimension 0.335Dia x 0.315 H 8.50mmx8.00mm
Series TR5? 382
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Housing Material Thermoplastic
Terminal Shape PIN WIRE
Package / Case Radial, Can, Vertical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
