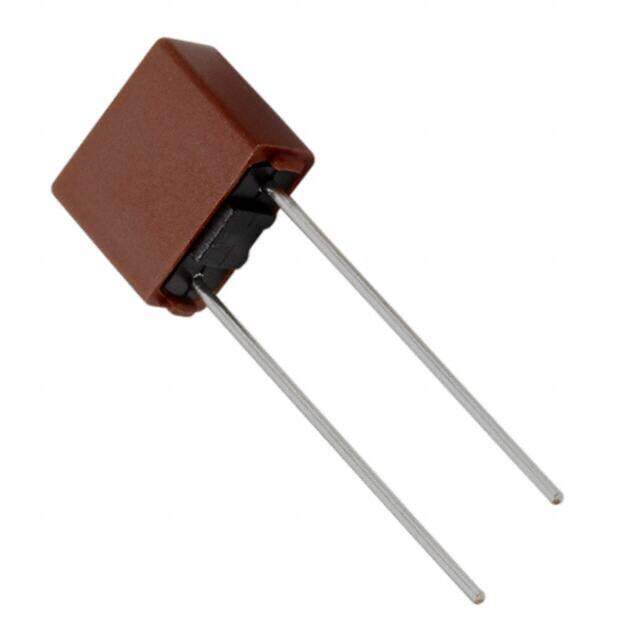

36912000000
RoHS
RoHS compliant
RoHS compliantPackage Radial, Box
Category Circuit Protection / Fuses
Description
LITTELFUSE - 36912000000 - FUSE, PCB, 2A, 300V, TIME DELAY
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.50336
≥100 USD $0.4884
≥500 USD $0.410784
≥1000 USD $0.341
≥3000 USD $0.310006
Inventory: 5714
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Box
Terminal Shape PIN WIRE
Number of Pins 2
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Box (TB)
Published 2008
Series TE5? 369
Size / Dimension 0.335Lx0.157W x 0.315 H 8.50mmx4.00mmx8.00mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
ECCN Code EAR99
Resistance 29.8mOhm
Terminal Finish Tin (Sn)
HTS Code 8536.10.00.40
Packing Method AMMO PACK; TAPE AND REEL
Depth 4mm
Current Rating 2A
Reference Standard PSE; SEMKO; UL
Voltage - Rated AC 300V
Approval Agency cULus, PSE/JET
Body Length or Diameter 8.5mm
Physical Dimension 8.5mm x 4mm x 8mm
Lead Length 18.8mm
Working Voltage 300V
Current 2A
Power Dissipation 700mW
Response Time Slow Blow
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 21
DC Cold Resistance 0.0298Ohm
Circuit Protection Type ELECTRIC FUSE
Blow Characteristic TIME LAG
Fuse Size TE5
Joule Integral-Nom 12 J
Fuse Current 2A
Dimensions
Height 8.001mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
