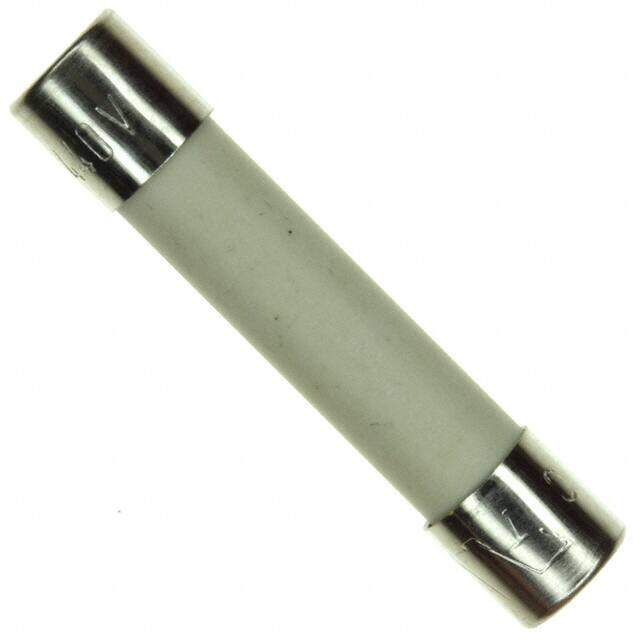

35611000029
RoHS
RoHS compliant
RoHS compliantPackage 3AB, 3AG, 1/4 x 1-1/4
Category Circuit Protection / Fuses
Description
FUSE CERAMIC 1A 440VAC 3AB 3AG
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.804
≥1 USD $1.804
≥10 USD $1.71952
≥100 USD $1.63328
≥500 USD $1.318416
≥1000 USD $1.117776
≥3000 USD $1.089114
Inventory: 1258
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Body Height 32mm
Diameter 6.3mm
Technical
Fuse Current 1A
Joule Integral-Nom 4 J
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.33Ohm
Melting I2t 4.4
Breaking Capacity @ Rated Voltage 1kA
Fuse Type Cartridge, Ceramic
Response Time Slow Blow
Power Dissipation 1.8W
Physical Dimension 6.3mm x 32mm
Approval Agency CE, cULus
Voltage - Rated AC 440V
Reference Standard CE; UL
Current Rating 1A
Terminal Finish Nickel (Ni)
Resistance 330mOhm
ECCN Code EAR99
Termination Clip
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.248Diax1.260L 6.30mmx32.00mm
Series 356
Published 2006
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Housing Material Ceramic
Terminal Shape END CAP
Surface Mount NO
Package / Case 3AB, 3AG, 1/4 x 1-1/4
Mounting Type Holder
Supply Chain
Factory Lead Time 13 Weeks
